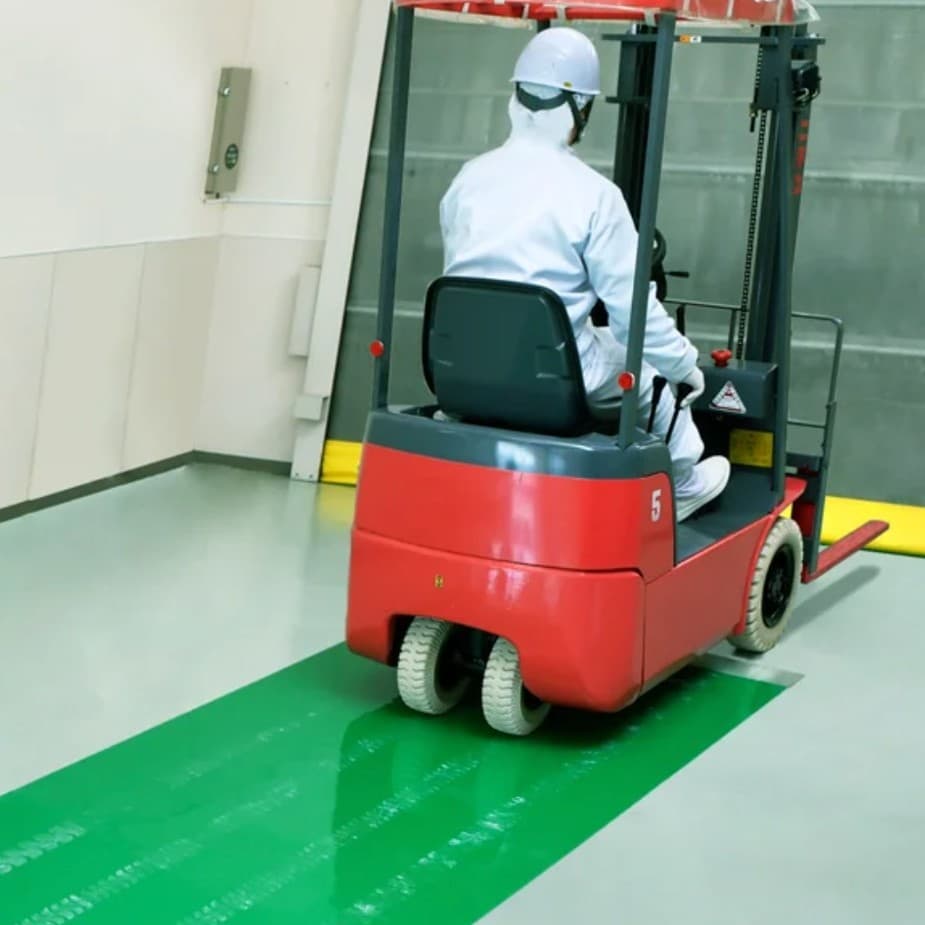

LIFT MAT
A tack mat that removes 90% or more of the hair and dust on forklift, truck, and AGV tires across three tire turns. Wiping with water or the dedicated cleaner restores the tack.
Features
When it helps
- Hair and dust still get in, even with a contamination program.
- Daily floor cleaning cannot keep up with tire marks.
- Wiping a tire is hard, and a peel-off mat can wrap into the wheel.

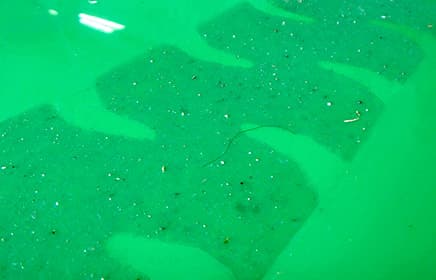

Removes 90% or more
The urethane gel follows the tire tread and picks up dirt too fine to see. Three tire turns on the mat remove 90% or more. A peel-off mat is about 60%.

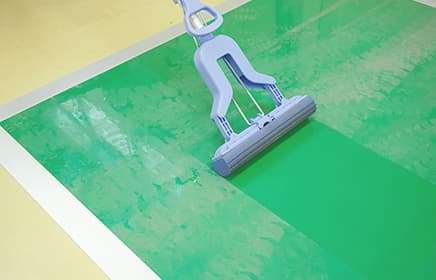

Wipe it and use it again
When the tack falls, wipe the surface with the dedicated cleaner or with water. The dirt comes off and the tack returns. If traffic is heavy, clean more often or lay a larger area.

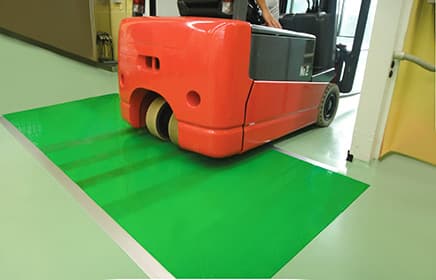

Stands about 4 t
High-strength polyurethane resists tearing and is less likely to wrap into a tire under a heavy vehicle. Flame resistance is equivalent to UL94 V-2.

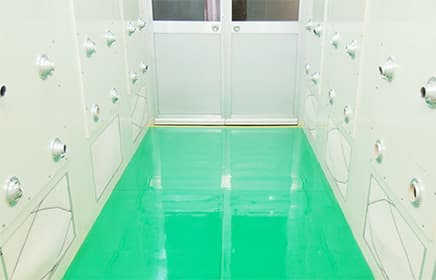

It can cover a whole floor
It can cover a whole floor, which peel-off mats struggle to do. In an air shower it catches hair and dust that the air blows up, so they do not scatter again.

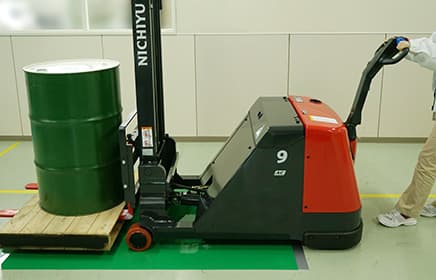

A rough-floor type
The rough-floor polyurethane grips an uneven floor, so no double-sided tape is needed. Set it straight on the floor.
Video
Test results
ATP (+AMP) swab
| Peel-off tack mat | LIFT MAT | |
|---|---|---|
| Removal | about 60% | 90% or more |
| Removal | Unused | 200 | 400 | 600 | 800 | 1000 |
|---|---|---|---|---|---|---|
| One tire turn on the mat | 60% | 61% | 59% | 59% | 60% | 58% |
| Three tire turns on the mat | 90% or more | 90% or more | 90% or more | 90% or more | 90% or more | 90% or more |
Method: ATP (+AMP) swab. Instrument: Kikkoman Biochemifa Lumitester. A forklift ran indoors for one minute. Tire dirt was measured, then measured again after the same truck crossed LIFT MAT.
These figures are measured test results, not a guarantee.
Tack and strength
| Unused | 200 | 400 | 600 | 800 | 1000 | |
|---|---|---|---|---|---|---|
| Tack | 100% | 100% | 91% | 100% | 91% | 91% |
| Strength | 100% | 102% | 94% | 105% | 90% | 92% |
Method: 90° peel for tack, and a tensile test for strength. Instruments: a Nidec Drive Technology force gauge and a Shimadzu Autograph. A reach truck of about 2 t passed 1,000 times. Unused is 100%.
These figures are measured test results, not a guarantee.
Method: ATP (+AMP) swab. Instrument: Kikkoman Biochemifa Lumitester. A 1 t forklift passed 5–10 times a day, carts dozens of times a day, with one cleaning a day. Removal was measured after 2 years and 1 month.
These figures are measured test results, not a guarantee.
Structure

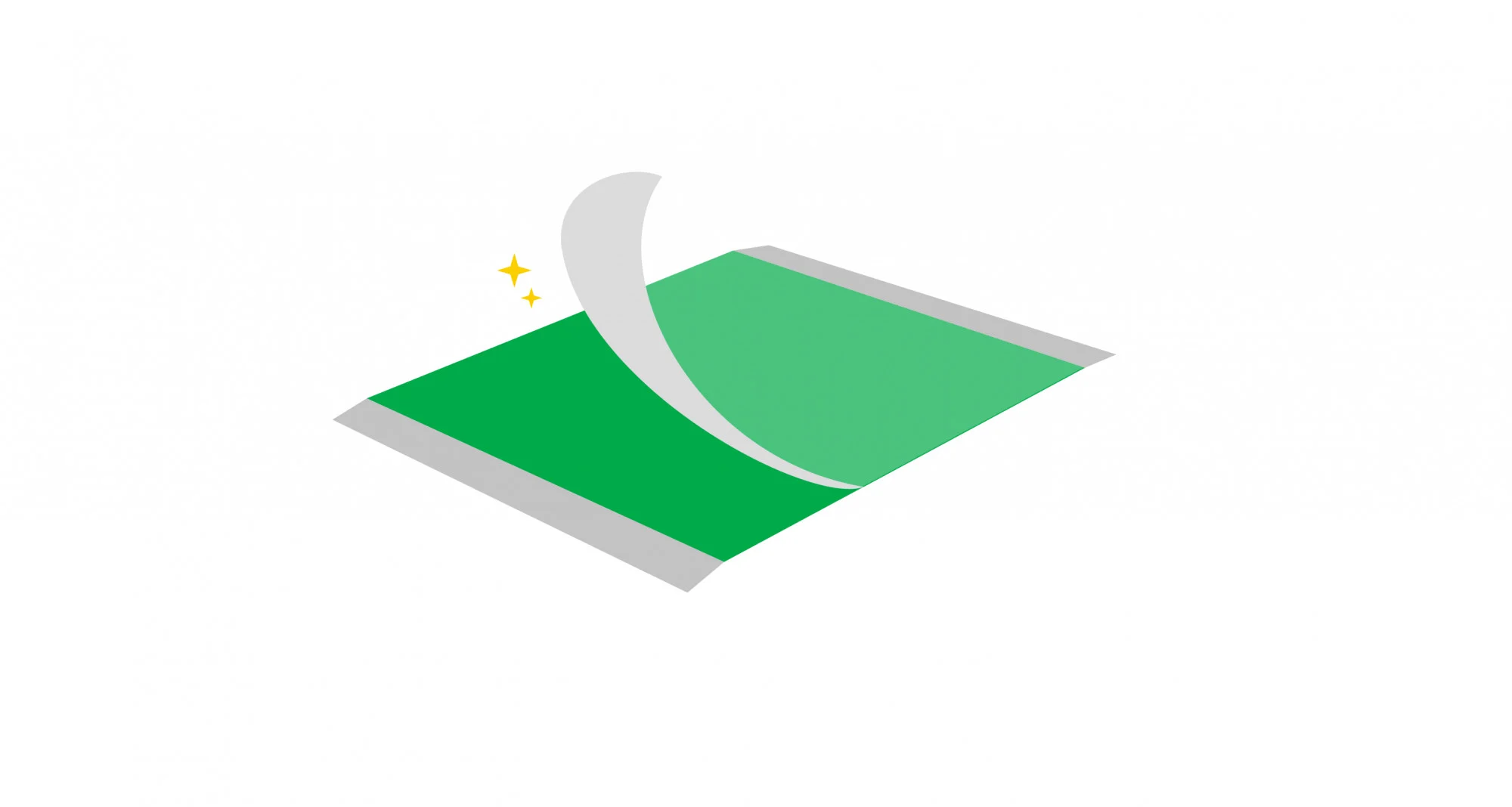

A protective film covers both faces.
Standard
(Walking face)High-strength polyurethane
Core (PET)
(Floor face)Polyurethane
Rough floor
(Walking face)High-strength polyurethane
Core (PET)
(Floor face)Rough-floor polyurethane
Where it is used
It can cover an indoor aisle for heavy vehicles, including an air shower floor. Typical places are a changing room, a heavy-vehicle aisle, the entrance to a clean area, and an air shower.
Changing room
Heavy-vehicle aisle
Before a clean area
Inside an air shower
Where to place it
The layout below is an effective way to install it.
- Clean area
- Semi-clean area
- Contaminated area
Dust catcherInside the air shower
HAIMEN MATBefore entering the workroom
Body roller / D-QuickBefore entering the workroom
STEPMATWhere dirt falls, and at doors between zones of different cleanliness
TIP REMOVERWork where dirt must not reach the product
LIFT MATA doorway that indoor vehicles pass through
How to use
1. Clean the floor.

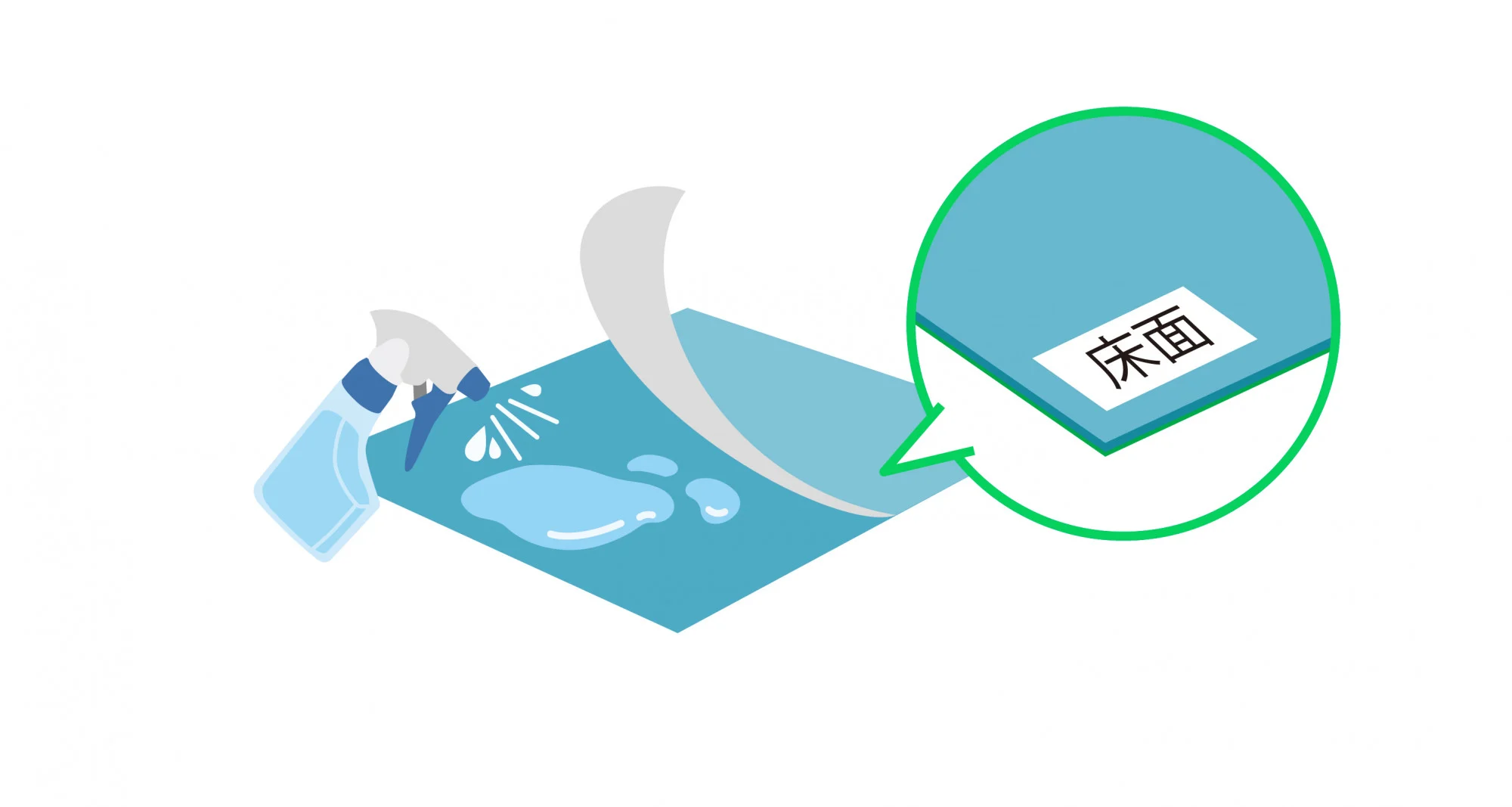

2. Peel the film on the side marked for the floor and mist it. Leave the other film on.
3. Lay the wet side down. Press out water and air without peeling the top film, then wipe it dry.
4. Peel the top film and set aluminum slopes at both ends. Let it dry overnight, 10–12 hours, without being stepped on.
It is not for outdoors or a doorway straight in from outside. It is slippery while wet. Do not cross it with wet or oily shoes or tires. Do not turn, stop, or start suddenly on the mat. It will not sit on rough concrete. A coated or resin floor is suitable. Avoid soft PVC and floors rich in plasticizer.
Tire size and mat length
One tire turn removes about 60%. Three turns remove 90% or more. Choose a length that lets the indoor vehicle's tire turn three times.
| Item | Φ200 | Φ250 | Φ300 | Φ350 |
|---|---|---|---|---|
| Length for three tire turns | 1884 | 2355 | 2826 | 3297 |
| Suggested mat length | 1800 | 2400 | 3600 | 3600 |
Wet the mat with water or the dedicated cleaner, gather the dirt with a damp cloth or mop, and wipe the water off. If traffic is heavy, clean more often or lay a larger area.
Comments
Tire marks and floor cleaning both dropped.
Daily cleaning could not keep up with tire marks. The marks stay on the mat, so the floor takes less work.
A food maker in Aichi
Dirt no longer spreads across the floor.
It sits at the indoor forklift doorway. The tack is about right, and dirt stopped spreading.
A food maker in Chiba
Even one tire turn takes the dust off.
It is at every entrance to the production area. One turn is enough to see the dust come off.
A medical-device maker in Gunma
Pallet dirt stays out of the plant.
Dirt on the underside of a pallet transfers onto the mat. An audit noticed it.
A chemical maker in Hiroshima
Lineup
Thickness is 3.0 mm. The standard walking face is green and the floor face is blue-green. The rough-floor type has an amber floor face that grips an uneven floor, so no double-sided tape is needed. Cutting and custom sizes are available, up to 5000 × 1200 mm.
LIFT MAT
| Code | Size (mm) | Contents |
|---|---|---|
| LM01-10001 | 900×600 | Mat only |
| LM01-10002 | 1200×900 | Mat only |
| LM01-10003 | 1800×1200 | Mat only |
| LM01-10004 | 2400×1200 | Mat only |
| LM01-10005 | 3600×1200 | Mat only |
Rough floor
| Code | Size (mm) | Contents |
|---|---|---|
| LM01-10009 | 900×600 | Mat only |
| LM01-10010 | 1200×900 | Mat only |
| LM01-10011 | 1800×1200 | Mat only |
Questions
- How often should it be replaced?
- About once every one or two years, depending on traffic and the place.
- Can it be used where the floor is wet?
- Water or oil weakens the tack. Use it in a dry place.
- Where should it go?
- On a straight indoor path for a forklift, pallet truck, or AGV, and where dust or hair falls.
- Can it be made to size?
- Yes. Cutting and custom sizes are available, up to 5000 × 1200 mm.
