Can a custom nozzle pick a part that a standard nozzle misses?

The nozzle is designed to the shape of the part. Examples for connectors, lenses, LEDs, brackets, and switches are on this page.

Can we ask about a part that is not in the lineup?

Yes. The examples are only examples. Send a photo or a drawing of the part, the tray, and the machine model.

What about lead time, minimum quantity, and material?

After you contact us, we tell you during the drawing and quotation, matched to the part and the quantity. Send the part information first.

Can we ask about repairing a nozzle?

Yes. Send photos of the nozzle as it is, and the machine you use. We check whether a repair or a new nozzle is the better path.

Custom Mounter Nozzle in Thailand | Special SMT Nozzles for Odd-Form Parts | Bosung Authorized Distributor

Special nozzles according to your requirements

On an SMT line in Thailand, a standard mounter nozzle can miss an odd-form part. The nozzle is designed and made to the shape of that part.

FIDEA is an authorized distributor of Bosung. We take the component, the tray, and the machine model, then confirm the drawing and the quotation before the nozzle is made.

We have made many nozzles for electronics assembly factories in Thailand and abroad.

After delivery, repeat orders and repair inquiries are welcome.

Ask about a customized nozzle

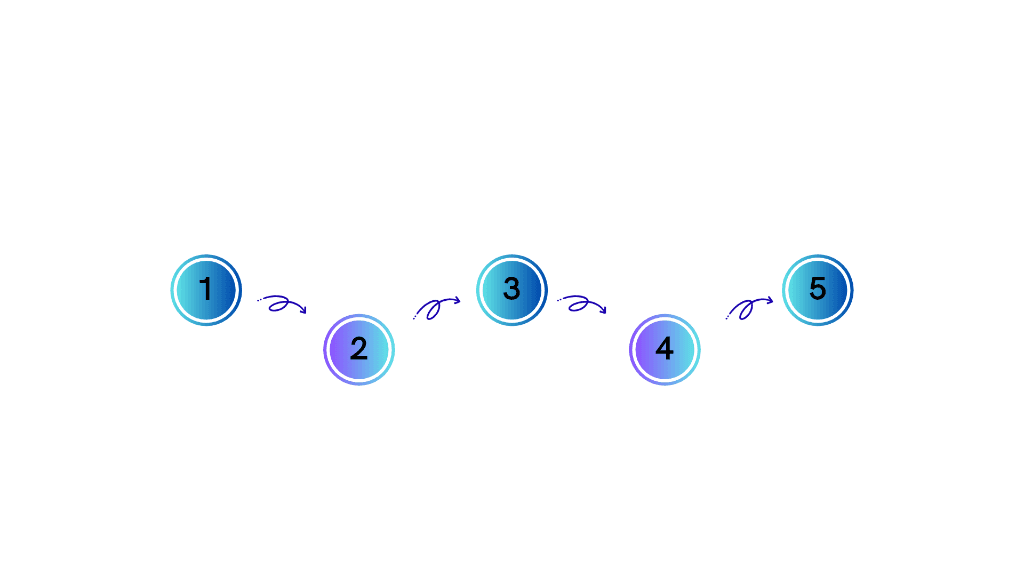

From the request to the nozzle

1. CONTACT

Contact FIDEA

2. PICK UP

FIDEA picks up the component, tray and machine model and gets information

3. GET DRAWING

FIDEA will update the drawing and quotation for your confirmation

4. ORDER

Confirm and order

5. GET NOZZLE

Get the nozzle after the order

1. CONTACTContact FIDEA
2. PICK UPFIDEA picks up the component, tray and machine model and gets information
3. GET DRAWINGFIDEA will update the drawing and quotation for your confirmation
4. ORDERConfirm and order
5. GET NOZZLEGet the nozzle after the order

Decided for each part

Parts that are not in the lineup are welcome.

Item	How it is decided
Shape and size	Designed from the part’s dimensions, photos, or a drawing, then confirmed on the drawing
Material	Proposed from the part’s material, weight, and how it is picked
Machine	Matched to the machine you use, including Panasonic, Yamaha, FUJI, JUKI, and SONY
Lead time and quantity	Given with the order, after the drawing and the quotation are confirmed

Repeat orders and repairs, after the nozzle is made

A nozzle we have made is kept by drawing and model number, so the same shape can be ordered again. A worn or broken nozzle can be supplied in that same shape.

Repair inquiries are welcome. Send photos of the nozzle as it is, and the machine you use.

How to read the examples

A gripper holds the part between jaws. A vacuum nozzle lifts the part at the tip. Each example is one of the two.

The tip follows the part. Rubber Type is a rubber tip, PAD Type is a pad, 2HOLE is two openings, and 4point supports the part at four points. The nozzle line of each example keeps that wording.

Examples

Examples for odd-form connectors, lenses, LEDs, brackets, and switches. The dimensions are examples. Each nozzle is designed for the part. These are some of the nozzles we have made. We have made many nozzles for electronics assembly factories in Thailand and abroad.

Gripper

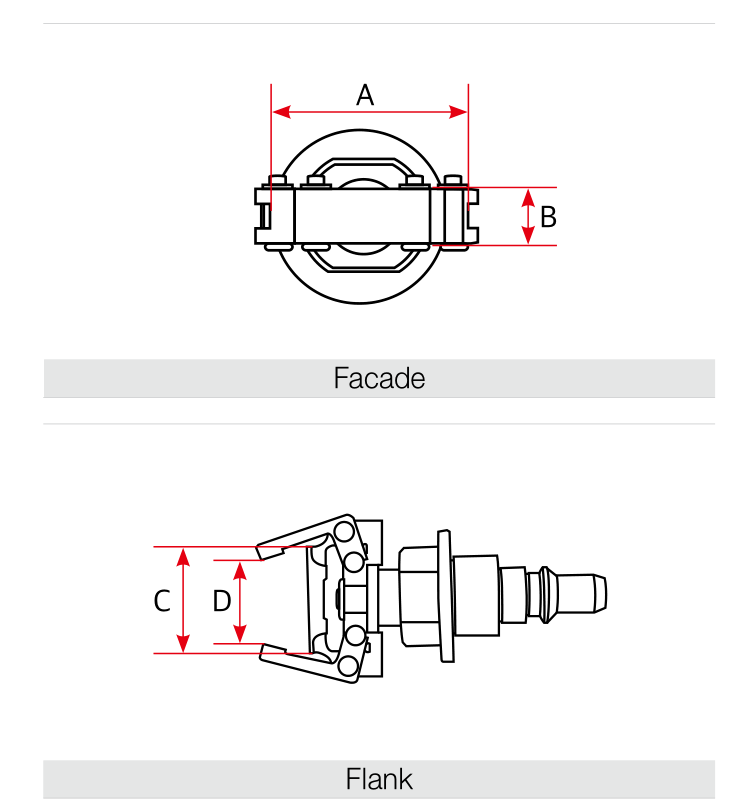

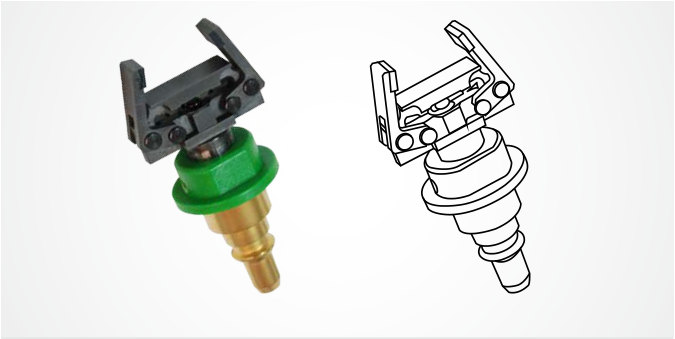

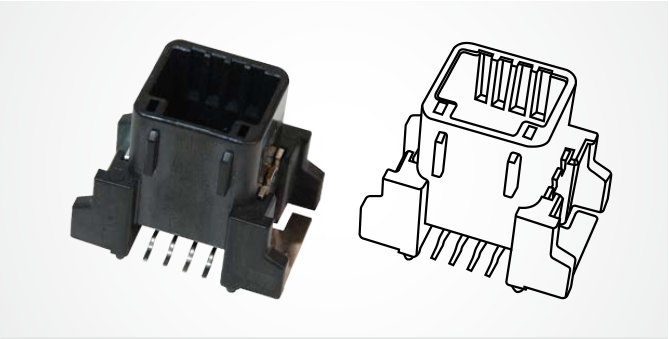

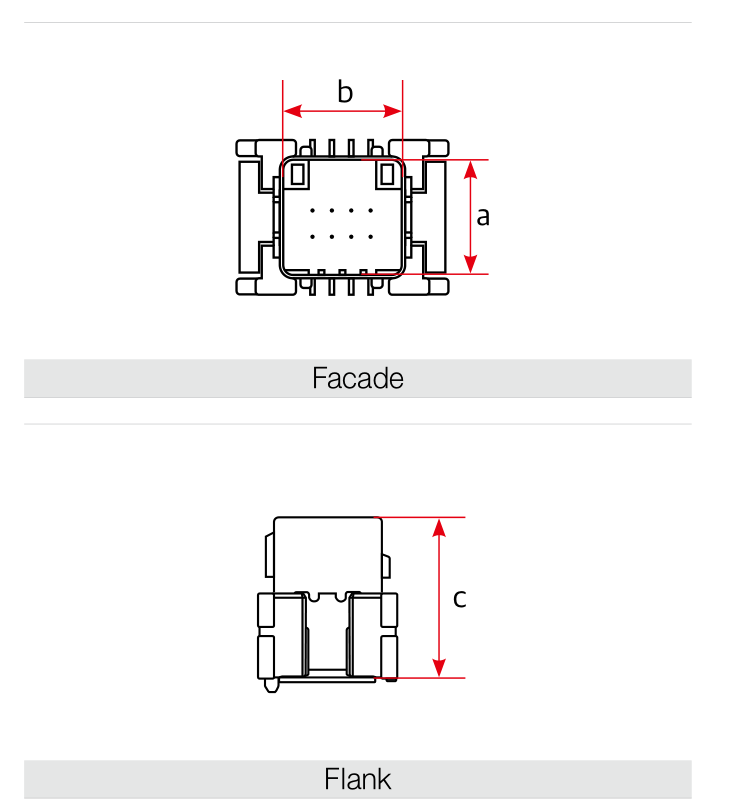

BSE01 Odd-form connector (gripper)

Component: 13.2 x 13.9 (T19.5)

Nozzle: 10.5 ~ 16.0

Nozzle

Mark	Size
A	16.0
B	5.0
C	13.0
D	10.5

Component

Mark	Size
a	13.2
b	13.9
c	19.5

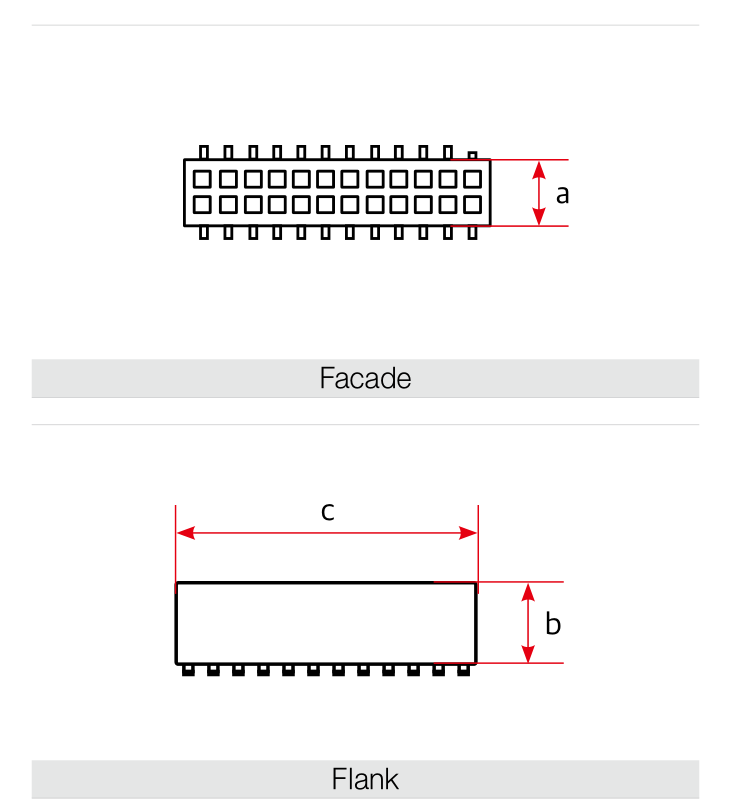

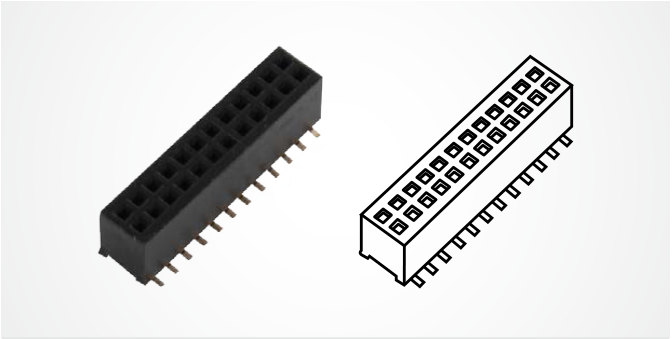

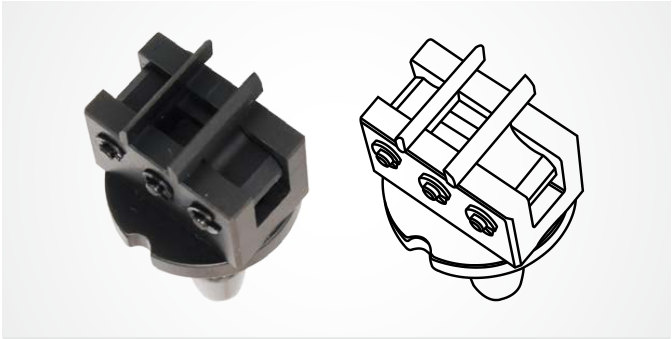

BSE02 Odd-form connector (gripper)

Component: 15.7 x 3.5 (T4.5)

Nozzle: 1.0 ~ 4.6

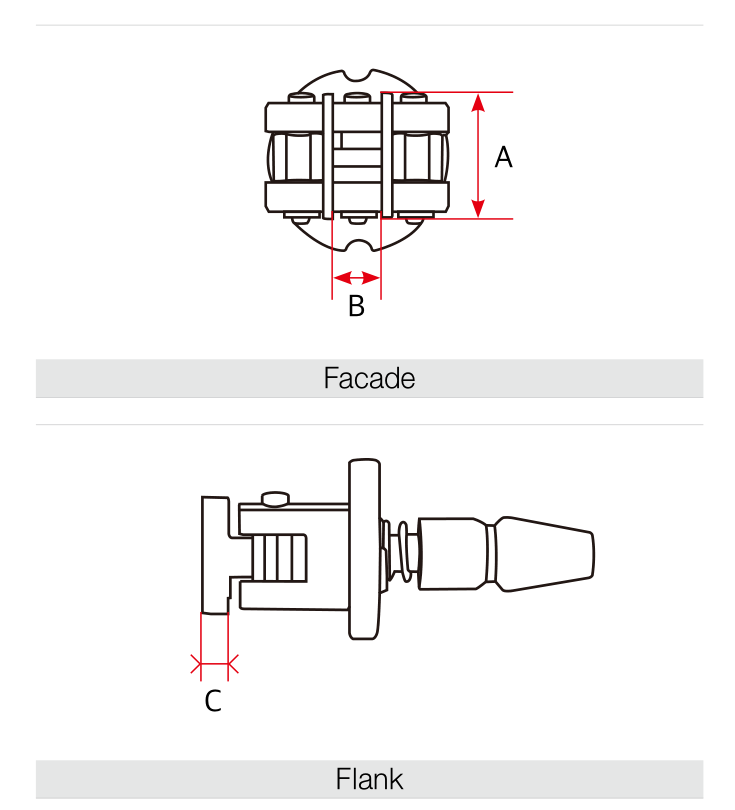

Nozzle

Mark	Size
A	10.0
B	4.6
C	2.3

Component

Mark	Size
a	3.5
b	2
c	15.7

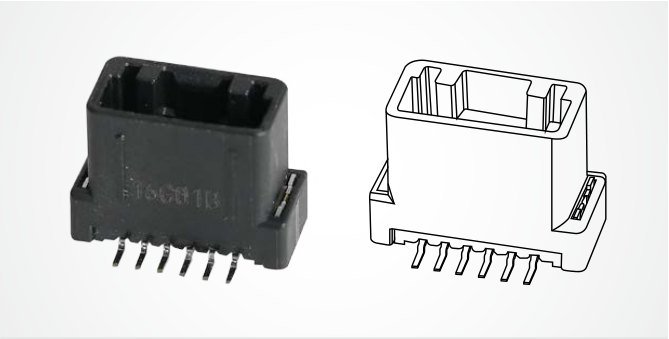

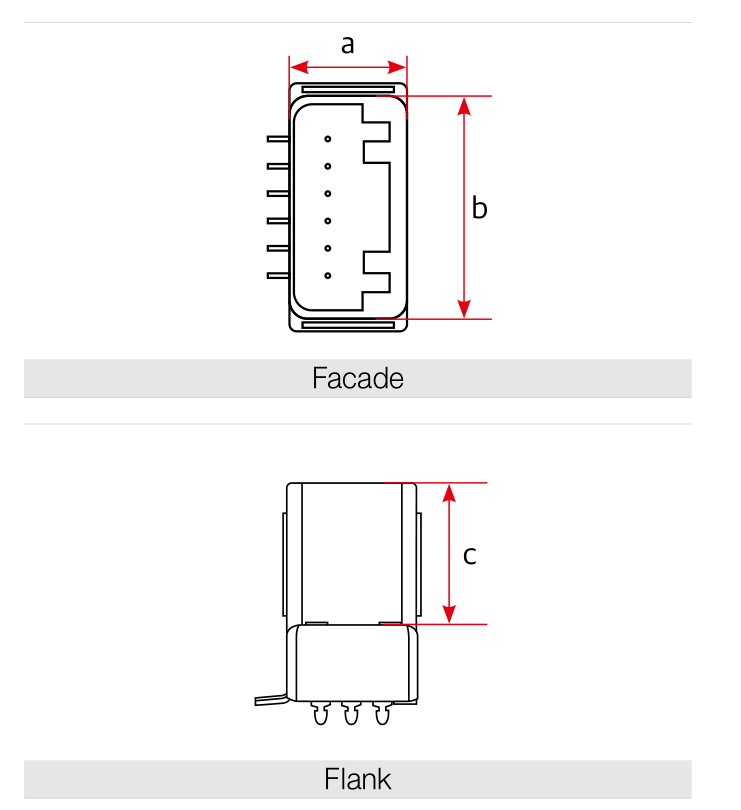

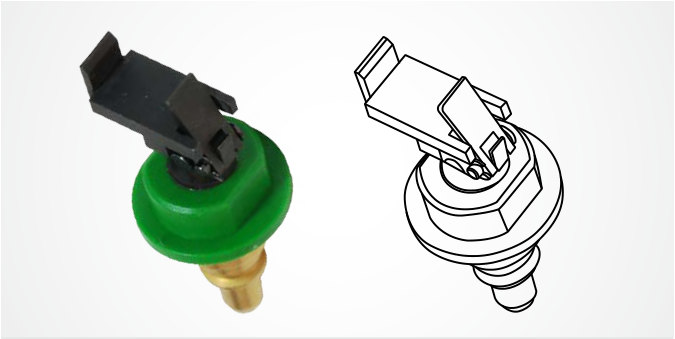

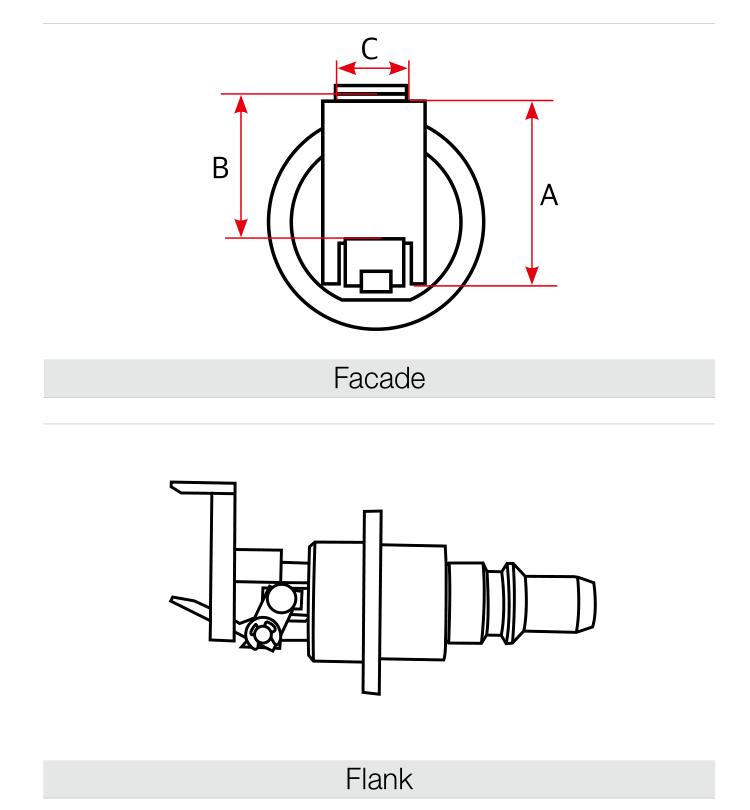

BSE03 Odd-form connector (gripper)

Component: 17.8 x 9.5 (T17.4)

Nozzle: 8.5 ~ 12.0

Nozzle

Mark	Size
A	12.0
B	8.5
C	5.0

Component

Mark	Size
a	9.5
b	17.8
c	10.0

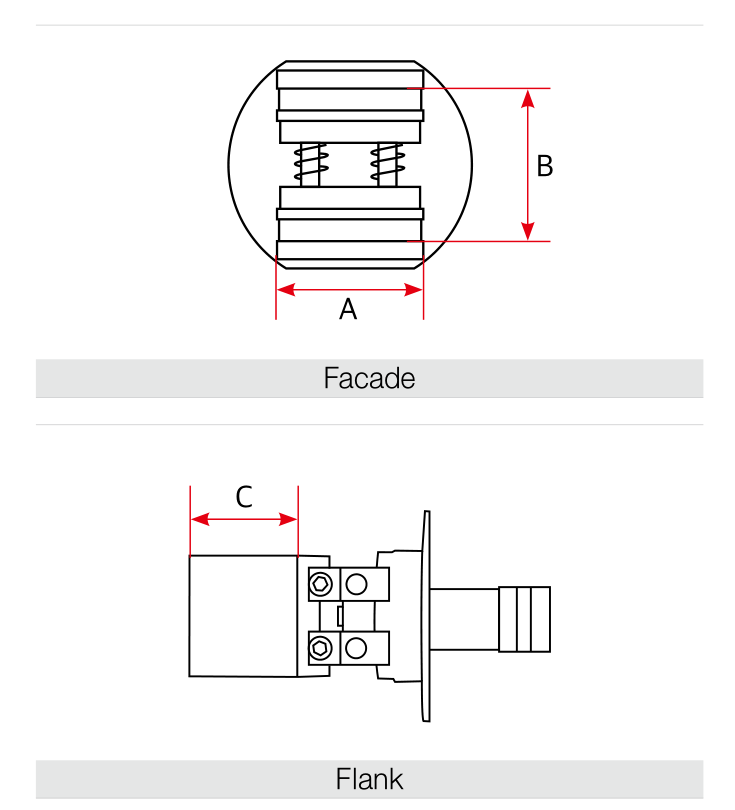

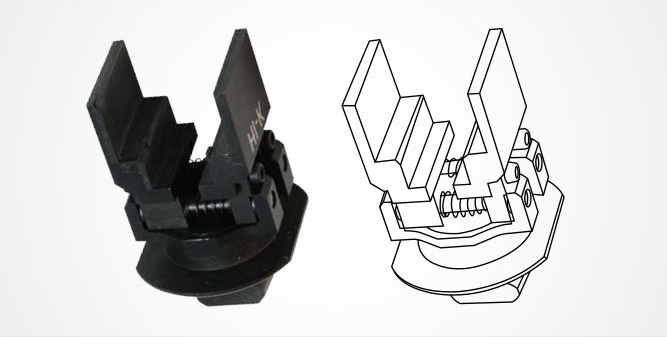

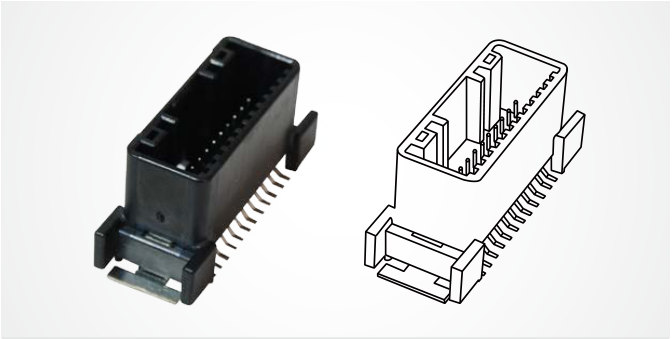

BSE04 Odd-form connector (gripper)

Component: 31.5 x 13.0 (T21.0)

Nozzle: 12.0 ~ 16.0

Nozzle

Mark	Size
A	15.0
B	16.0
C	10.0

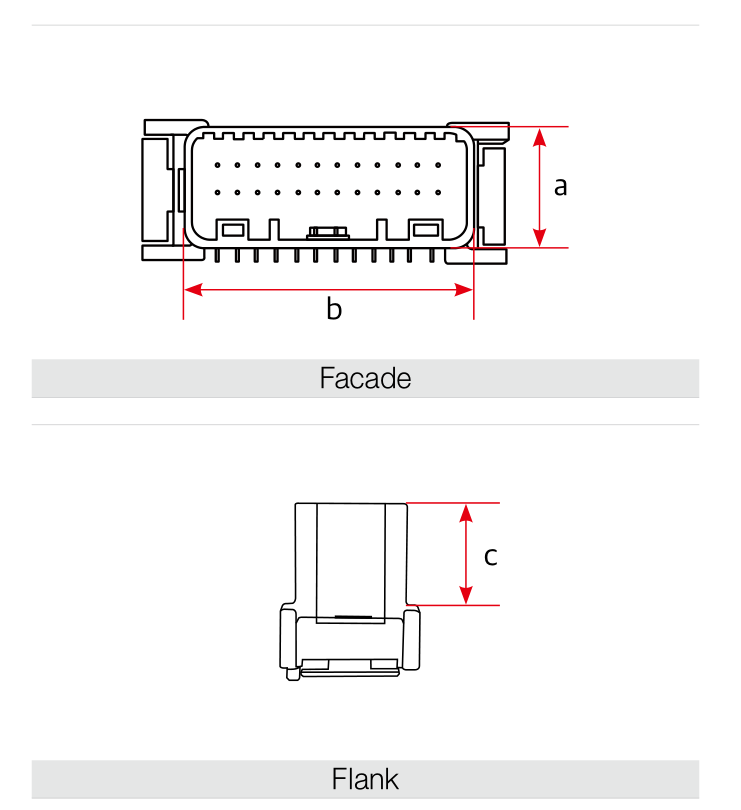

Component

Mark	Size
a	13.0
b	31.5
c	13.4

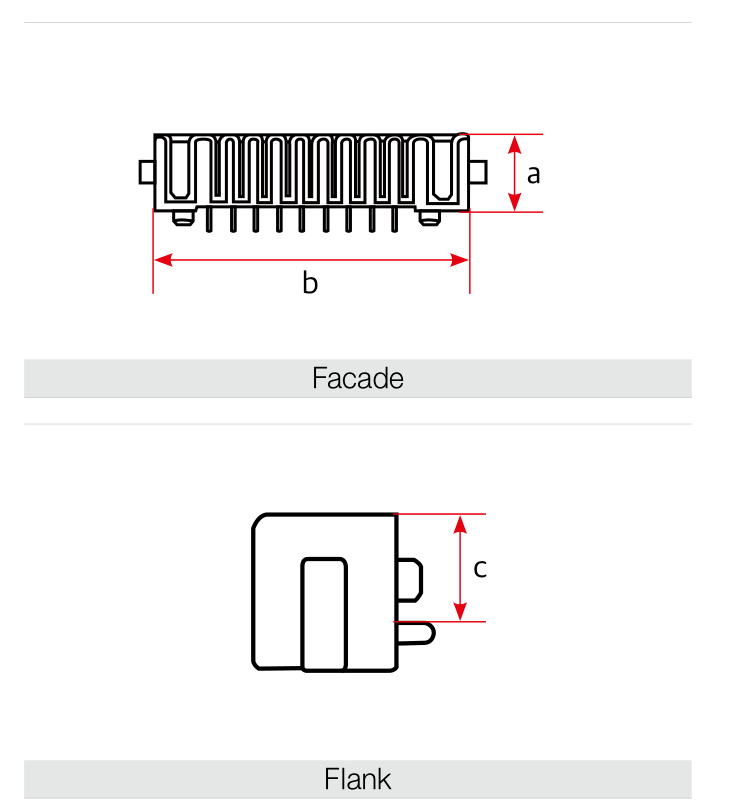

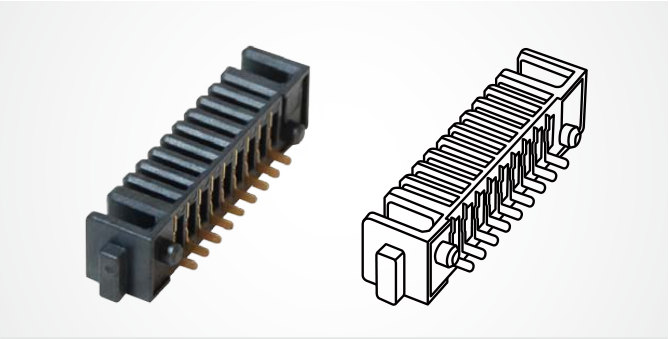

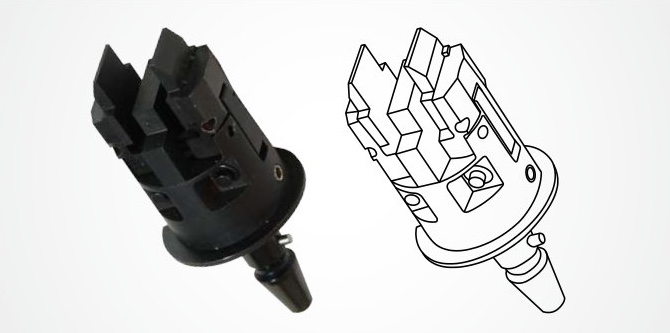

BSE05 Odd-form connector (gripper)

Component: 27.0 x 6.5 (T7.0)

Nozzle: 3.0 ~ 7.5

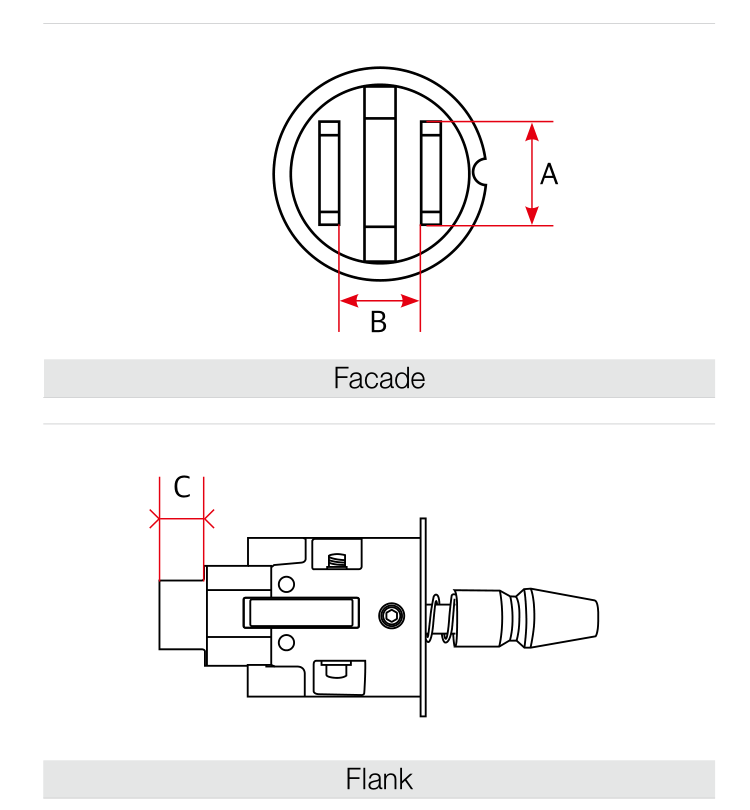

Nozzle

Mark	Size
A	7.0
B	7.5
C	4.8

Component

Mark	Size
a	6.5
b	27.0
c	5.0

Lens

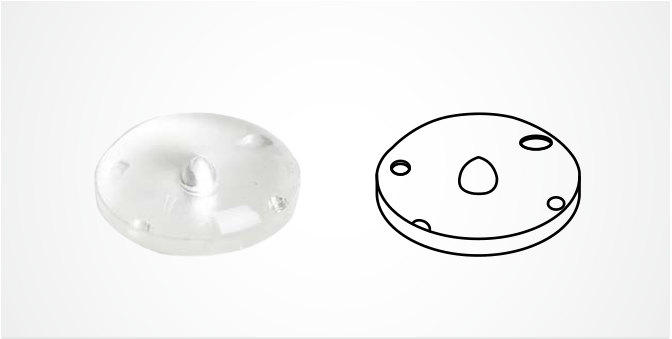

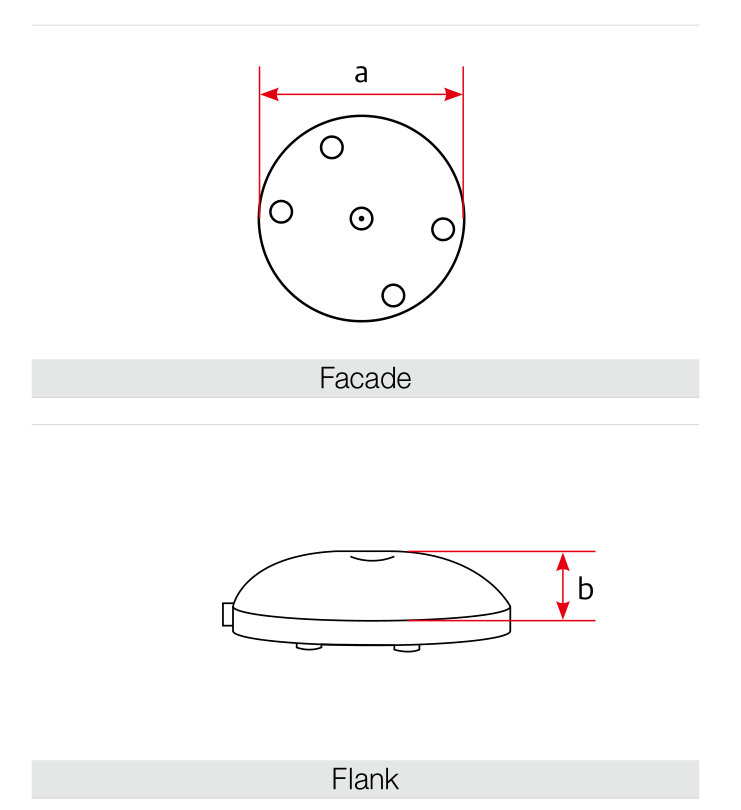

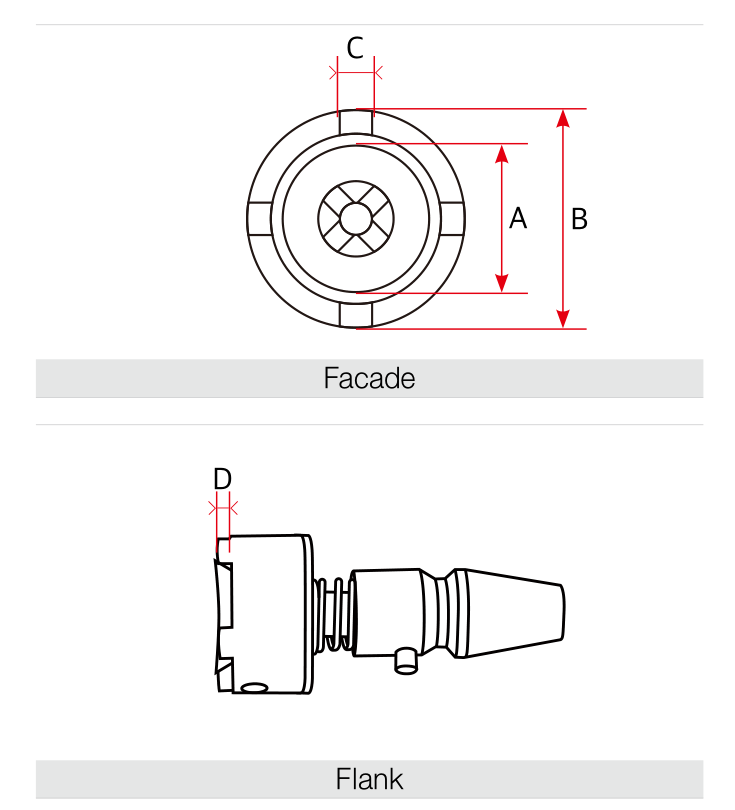

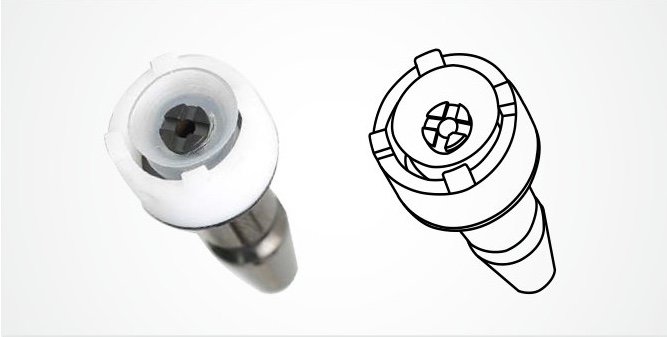

BSE06 Lens (vacuum)

Component: 17.0 (T3.5)

Nozzle: 11.0 / 7.5 (G1.8 x 1.4) 4point

Nozzle

Mark	Size
A	7.5
B	11.0
C	1.8
D	0.8

Component

Mark	Size
a	17.0
b	3.5

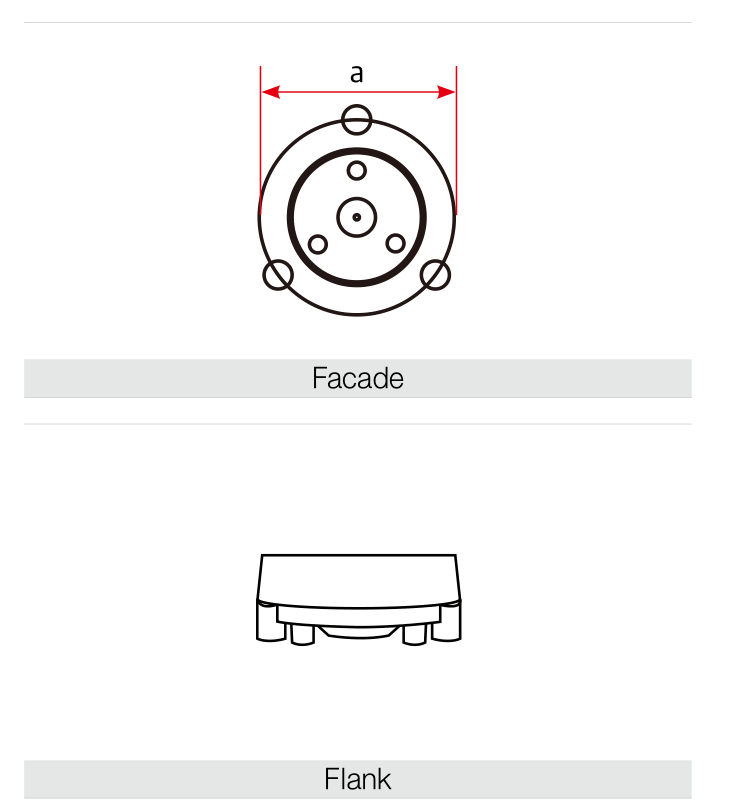

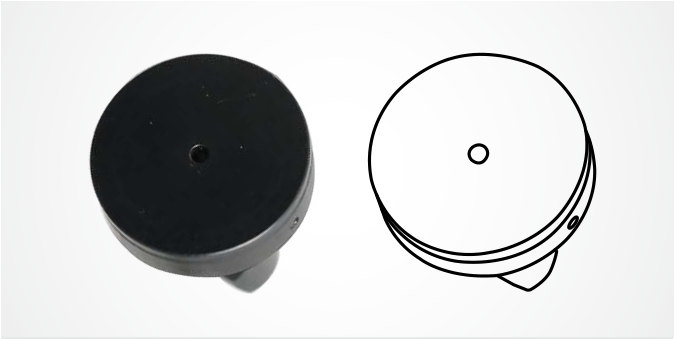

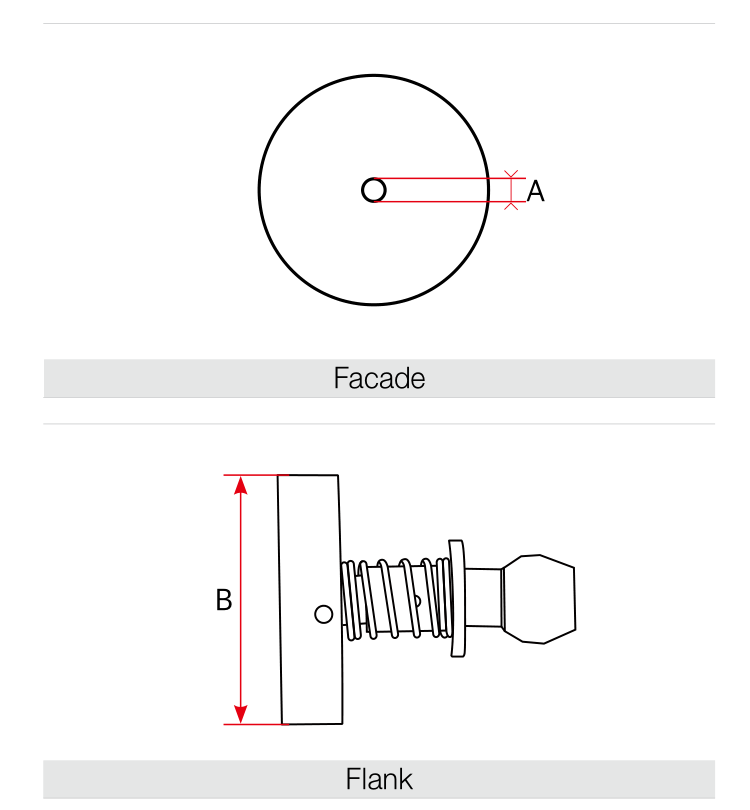

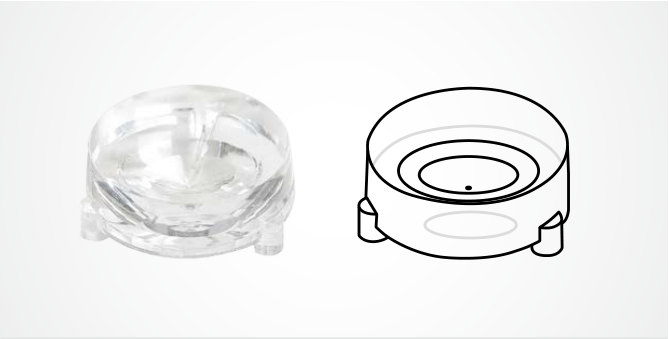

BSE07 Lens (vacuum)

Component: 17.0(T7.5)

Nozzle: 17.0 / 1.4

Nozzle

Mark	Size
A	1.4
B	17.0

Component

Mark	Size
a	17.0

LED

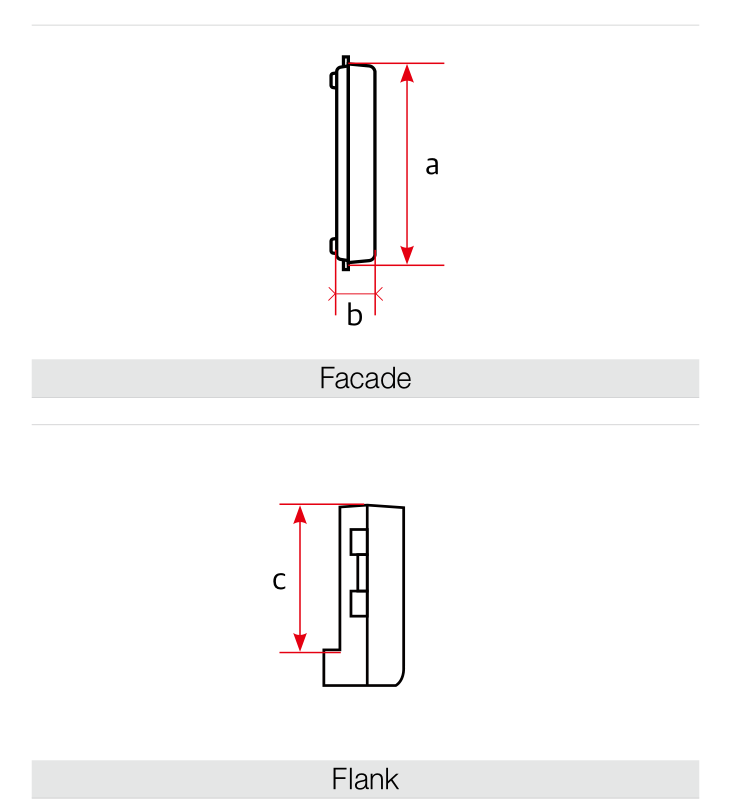

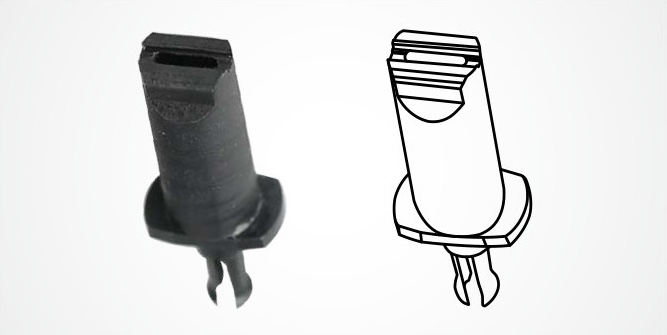

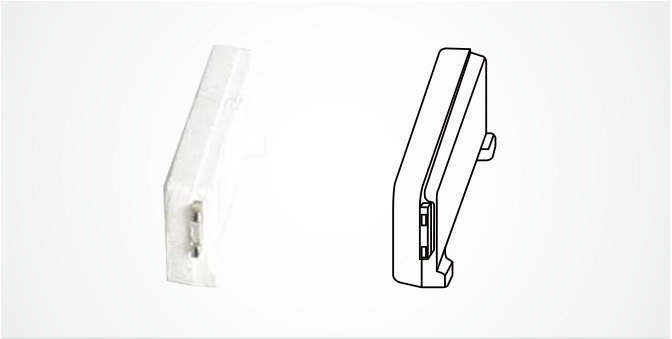

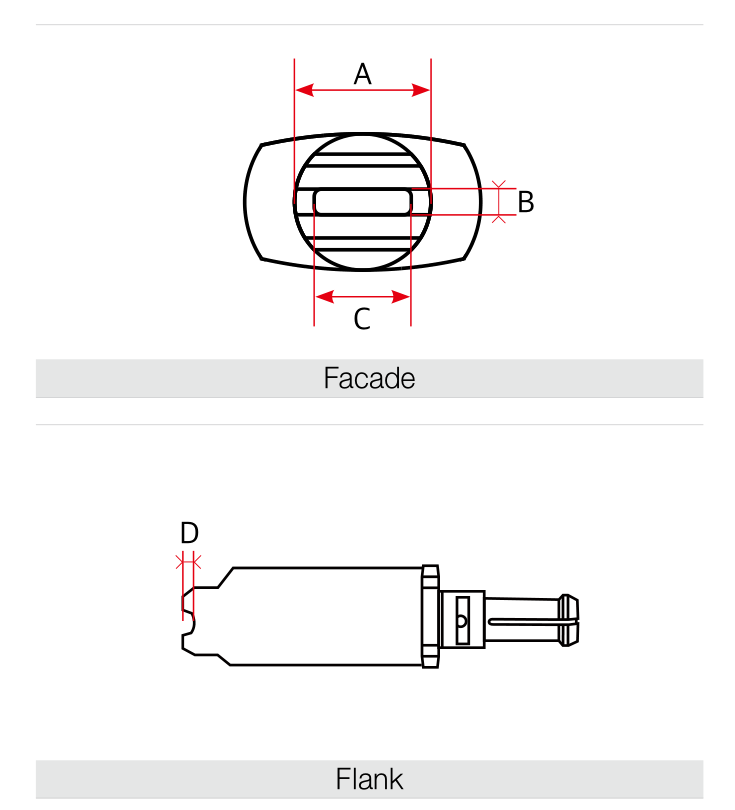

BSE08 LED (vacuum)

Component: 6.4 x 1.2(T3.2)

Nozzle: 5.7(3.7 x 1.0)

Nozzle

Mark	Size
A	5.7
B	1.0
C	3.7
D	0.5

Component

Mark	Size
a	6.4
b	1.2
c	2.5

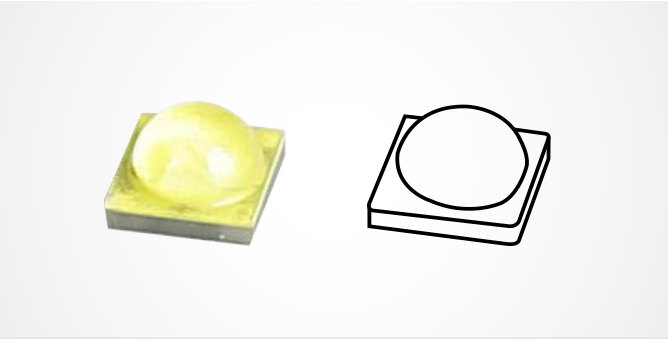

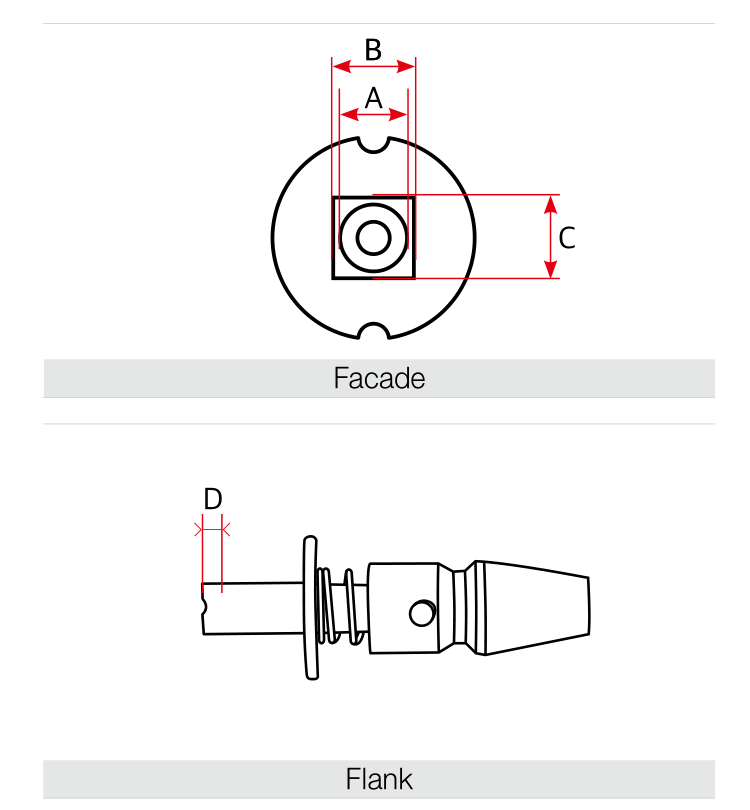

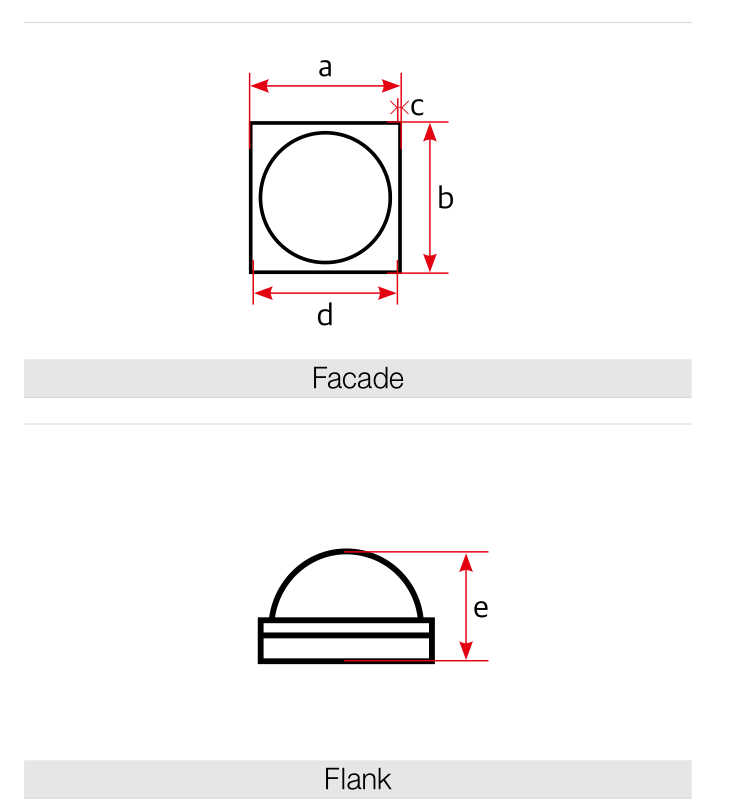

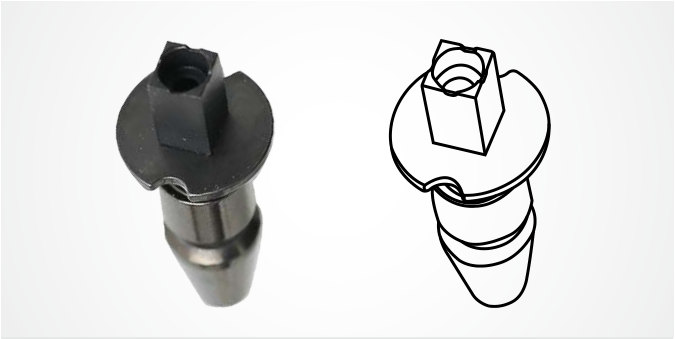

BSE09 LED / dome (vacuum)

Component: 3.5 x 3.5 (T2.0)

Nozzle: 3.5 x 3.5 (T2.2)

Nozzle

Mark	Size
A	3.0
B	3.5
C	3.5
D	2.2

Component

Mark	Size
a	3.5
b	3.5
c	0.25
d	3.0
e	2.0

Connector

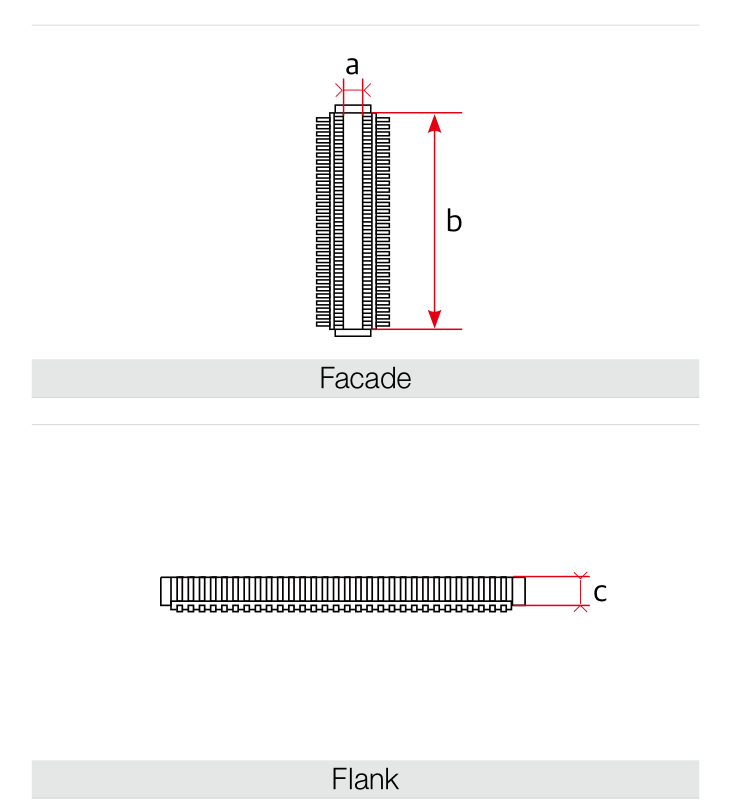

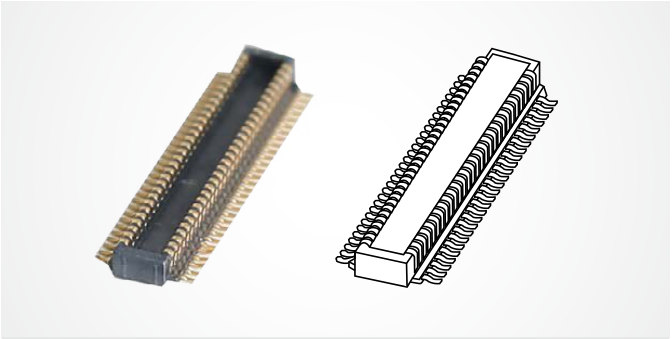

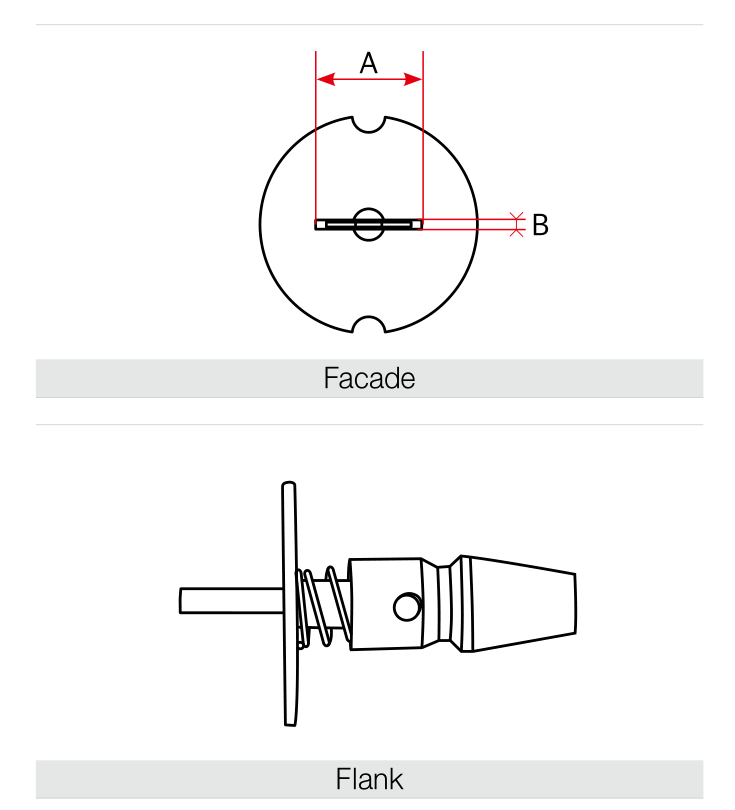

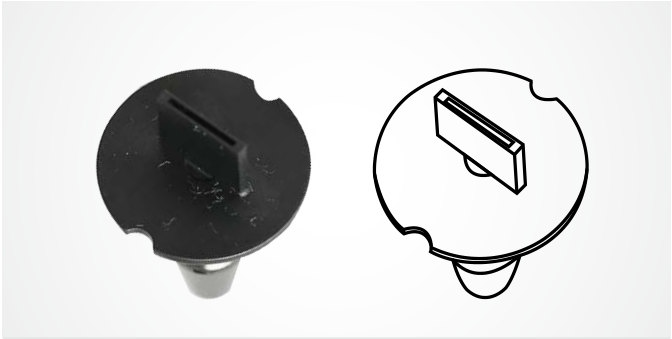

BSE10 Connector (vacuum)

Component: 12.2 x 1.2 (T1.2)

Nozzle: 7.5 x 1.0

Nozzle

Mark	Size
A	7.5
B	1.0

Component

Mark	Size
a	1.2
b	12.2
c	0.8

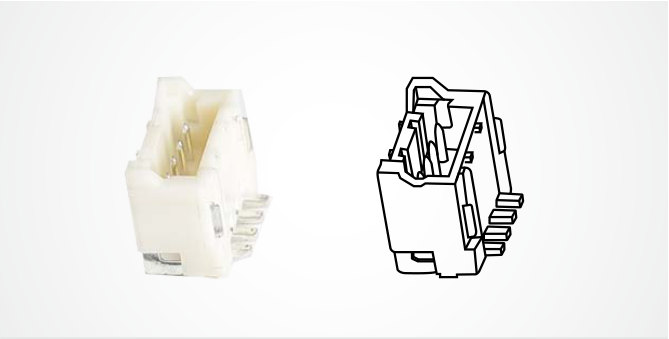

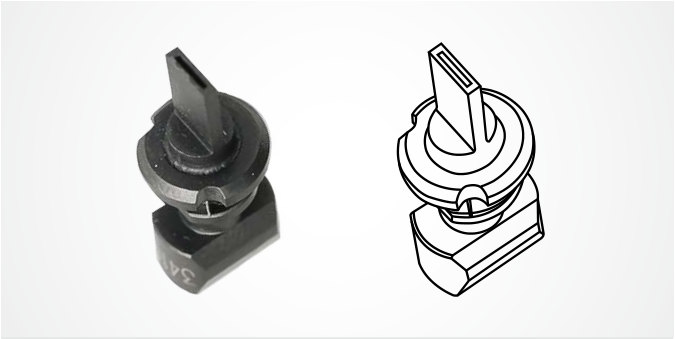

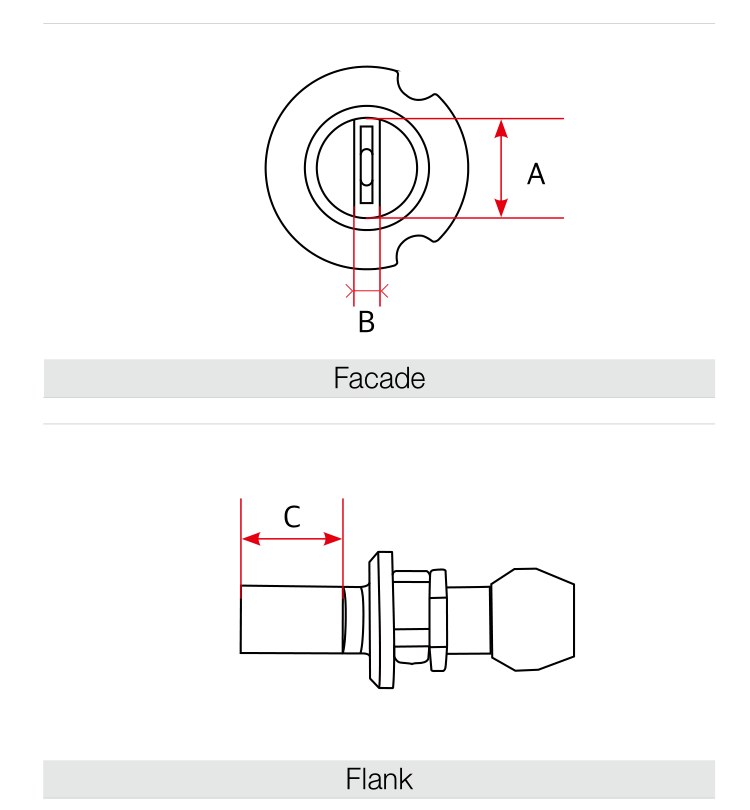

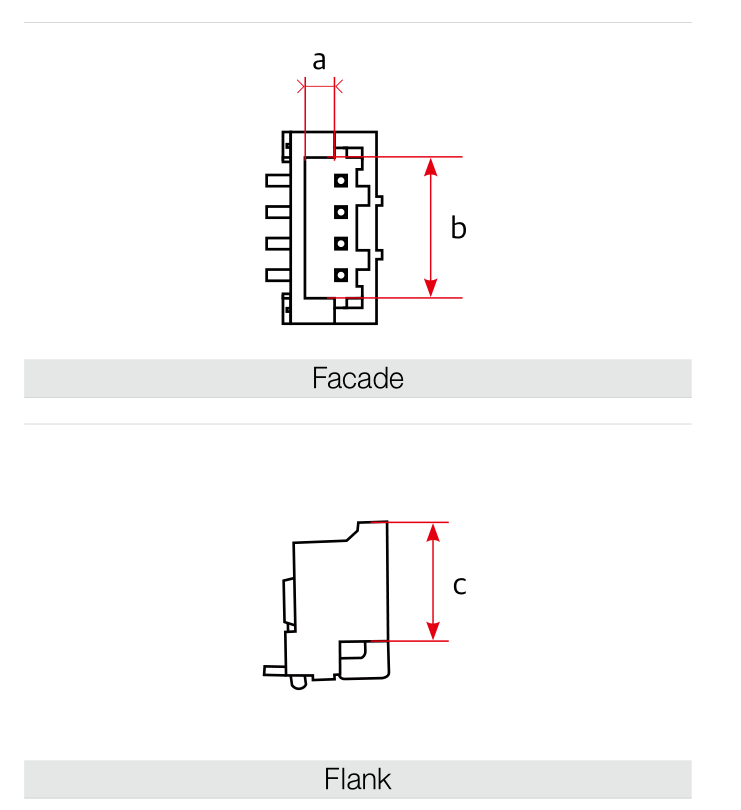

BSE11 Connector (vacuum)

Component: 6.5 x 1.5 (T7.8)

Nozzle: 4 x 1 (T6.0)

Nozzle

Mark	Size
A	4.0
B	1.0
C	6.0

Component

Mark	Size
a	1.5
b	6.5
c	3.3

Bracket

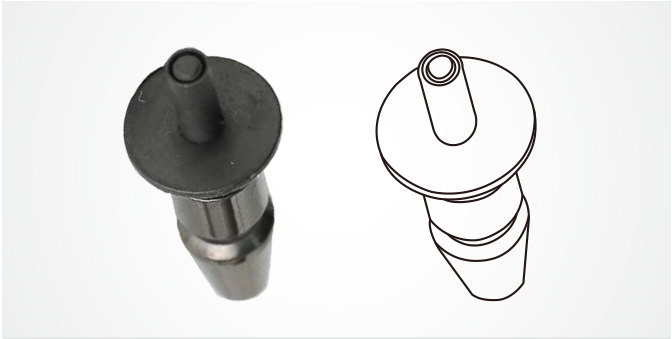

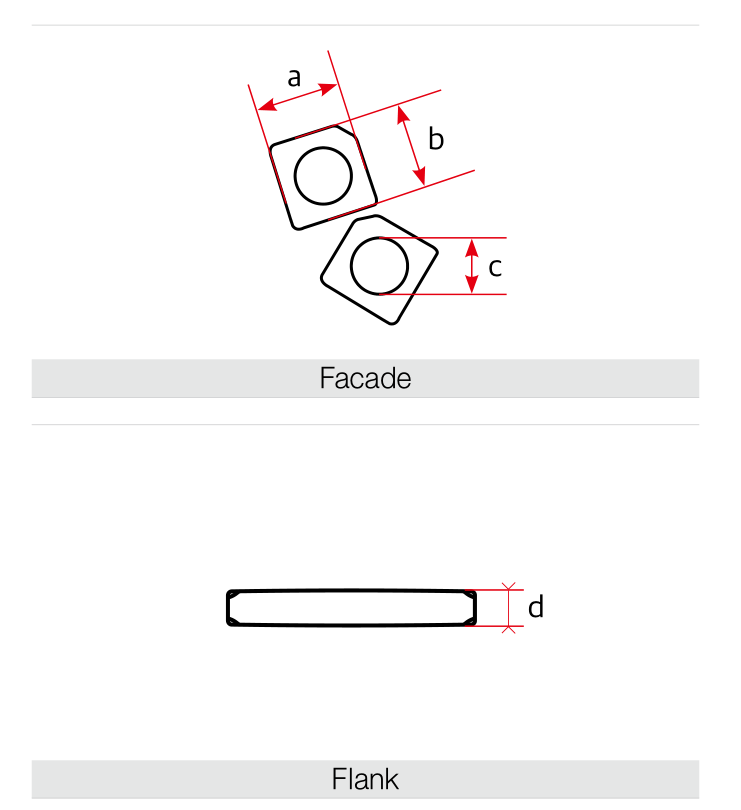

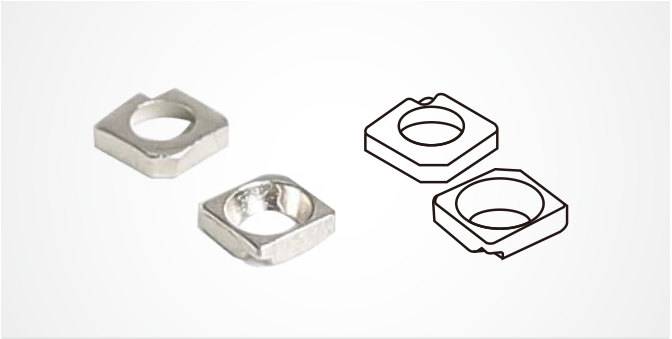

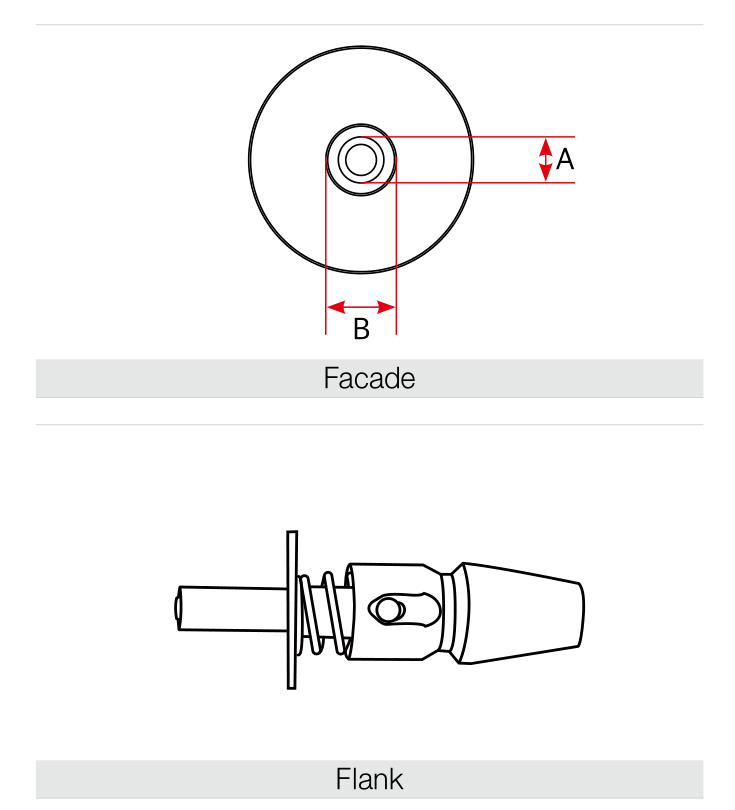

BSE12 Bracket (vacuum)

Component: 2.5 x 2.5 (T0.8)

Nozzle: 2.7 / 1.5

Nozzle

Mark	Size
A	1.5
B	2.7

Component

Mark	Size
a	2.5
b	2.5
c	1.5
d	0.8

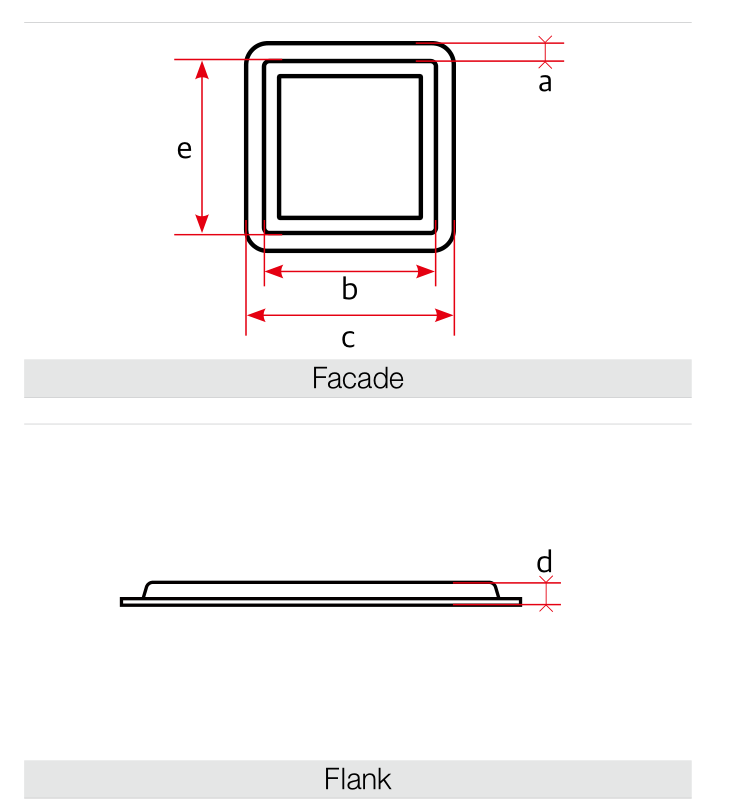

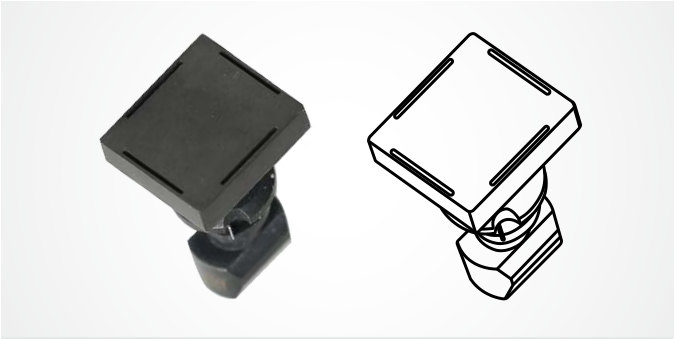

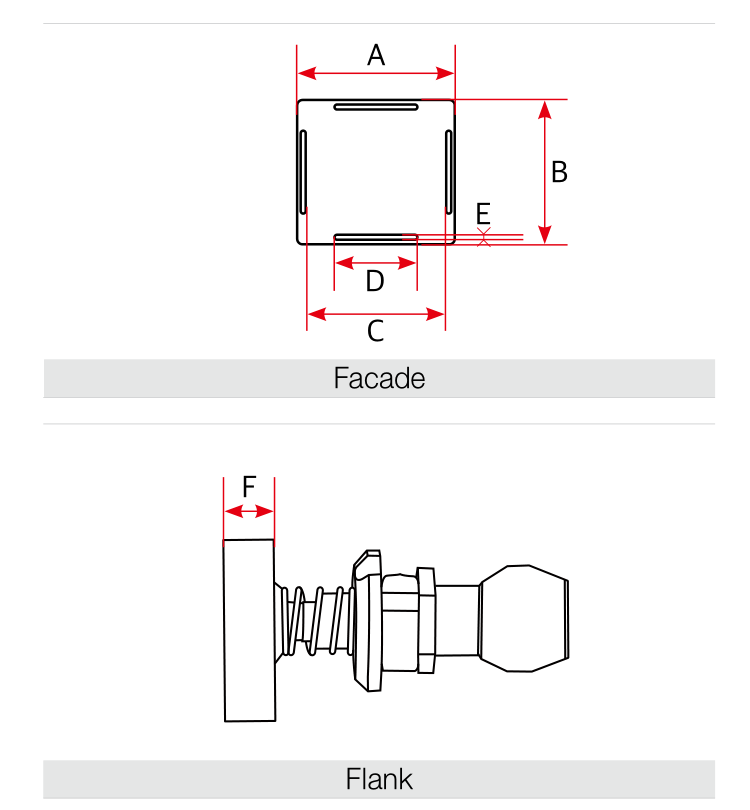

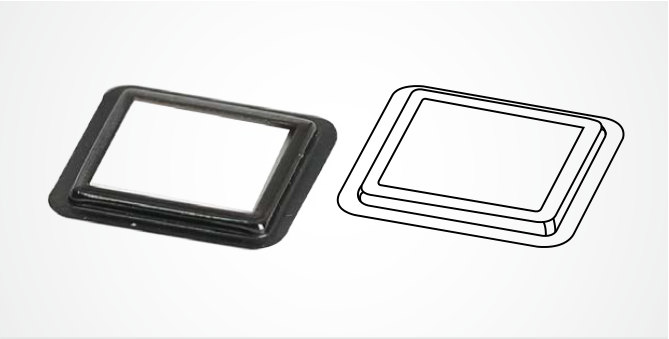

BSE13 Bracket (vacuum)

Component: 13.7 x 12.7 (T1.0)

Nozzle: 11.4 x 10.4

Nozzle

Mark	Size
A	10.4
B	11.4
C	9.0
D	5.8
E	0.3
F	2.9

Component

Mark	Size
a	1.0
b	11.5
c	12.7
d	1.0
e	10.5

Odd-form connector

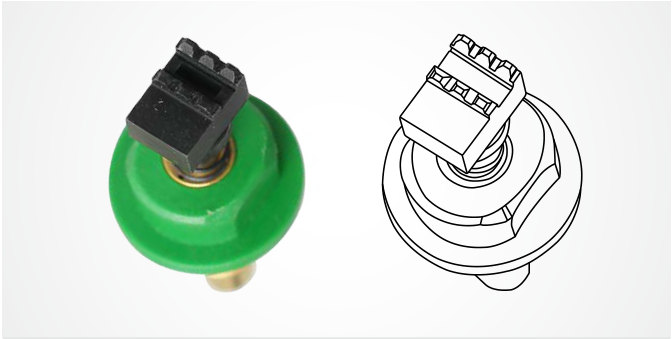

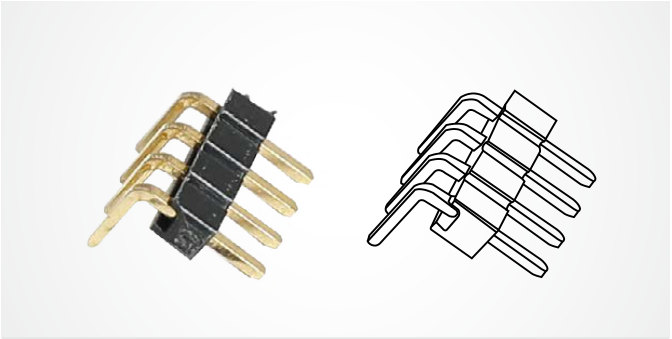

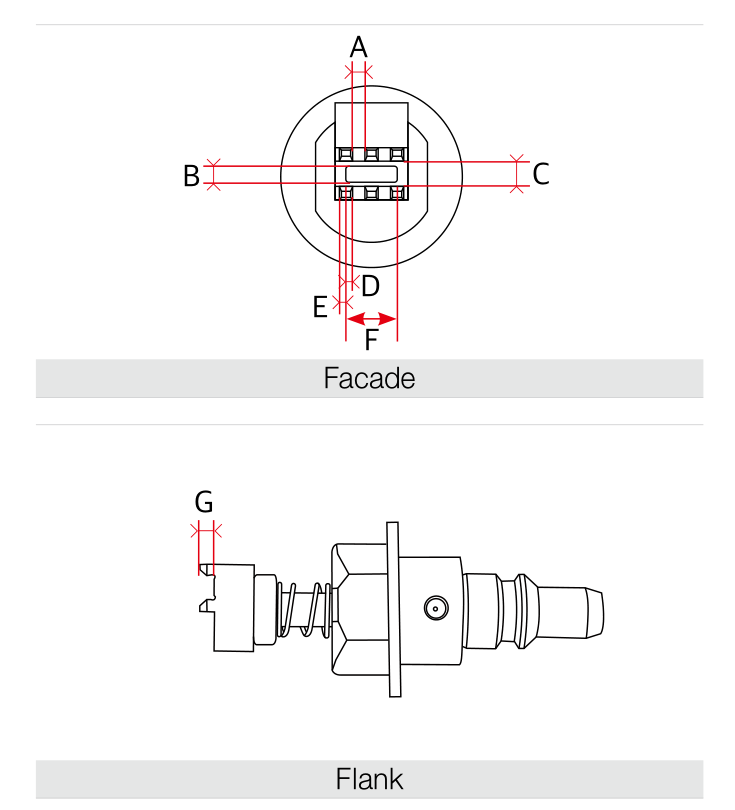

BSE14 Odd-form connector (vacuum)

Component: 8.2 x 2

Nozzle: 6.0 x 2.0

Nozzle

Mark	Size
A	0.7
B	1.2
C	2.1
D	0.65
E	0.65
F	4.0
G	1.3

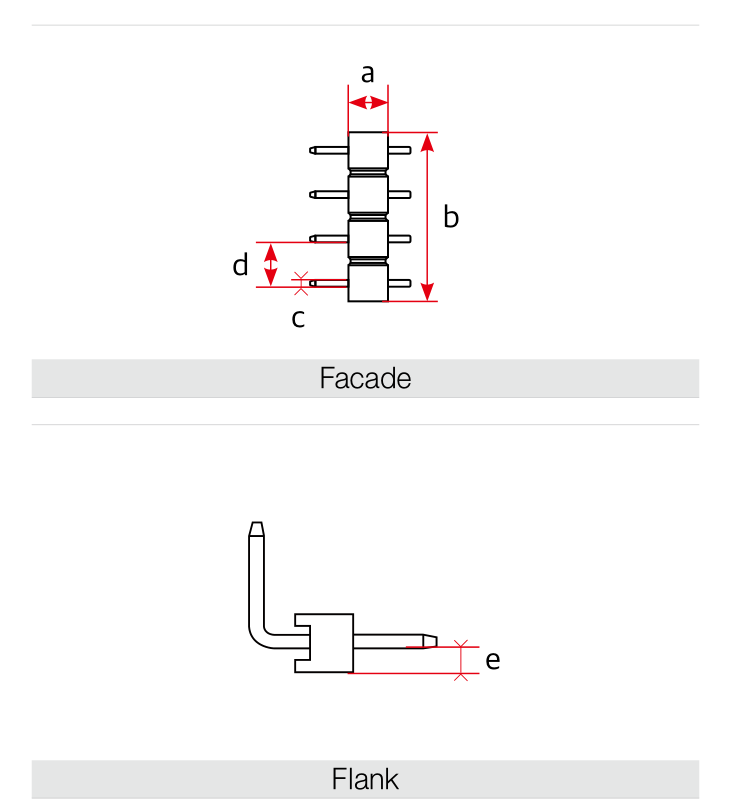

Component

Mark	Size
a	2.0
b	8.2
c	0.5
d	1.5
e	0.7

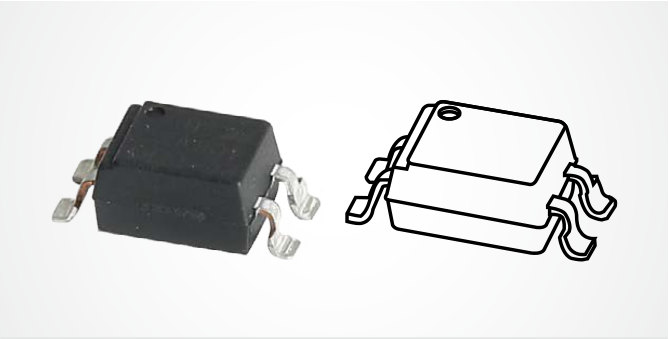

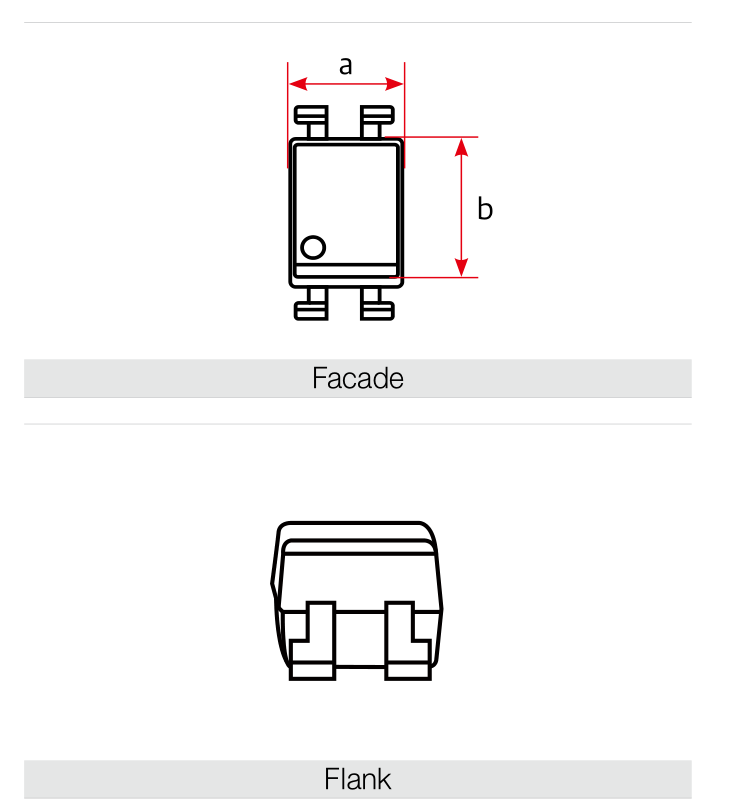

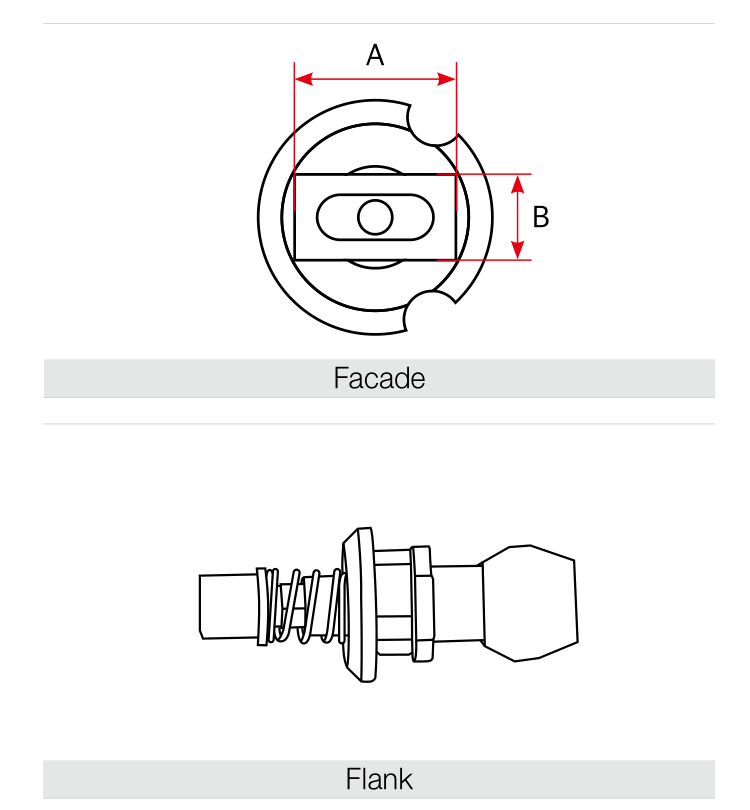

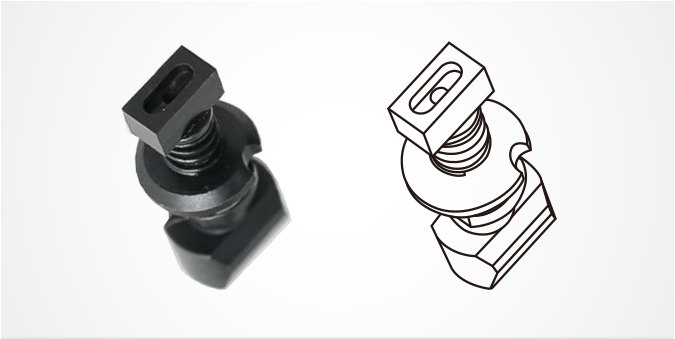

BSE15 Odd-form connector (vacuum)

Component: 6.0 x 4.0

Nozzle: 5.6 x 3.0 (PAD Type)

Nozzle

Mark	Size
A	5.6
B	3.0

Component

Mark	Size
a	4.0
b	6.0

Jack connector

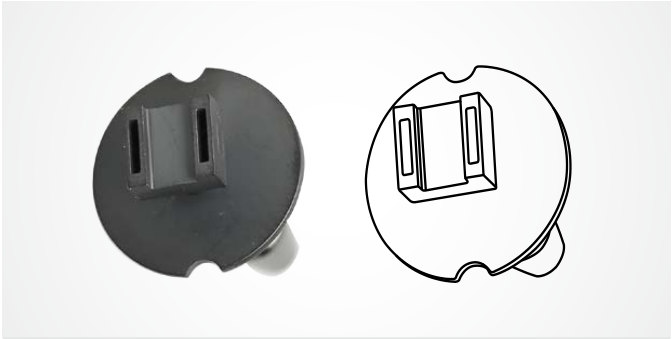

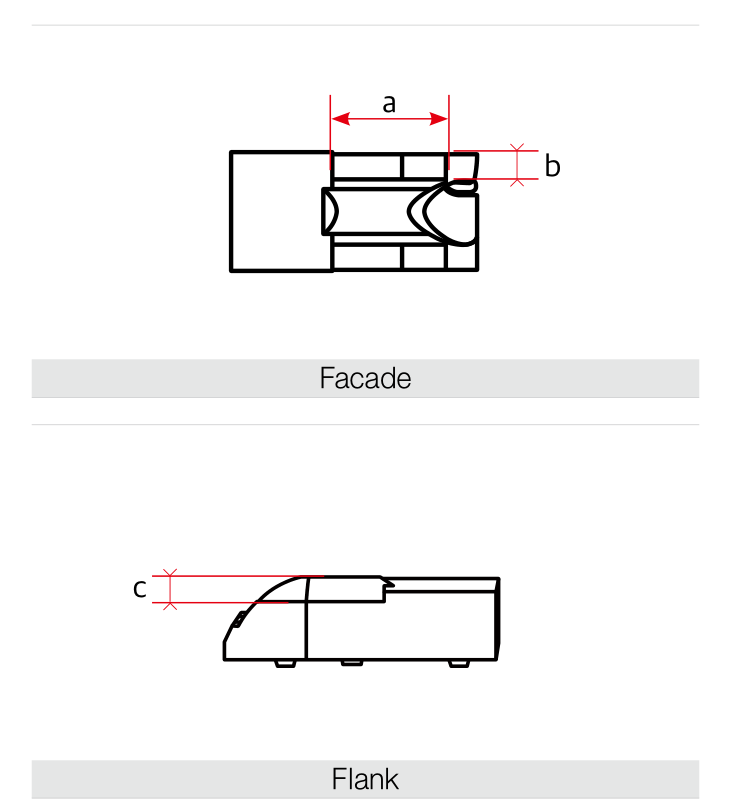

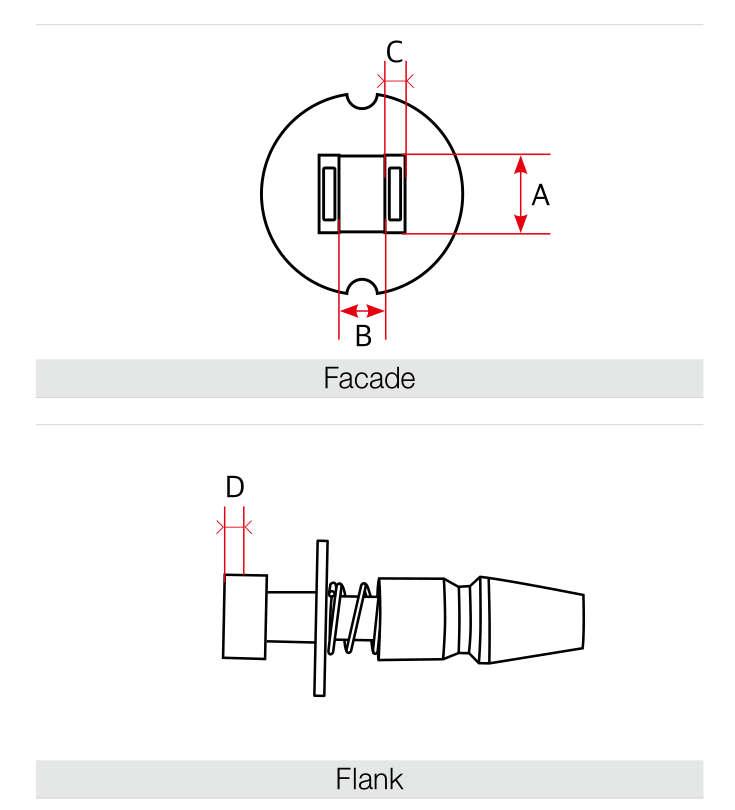

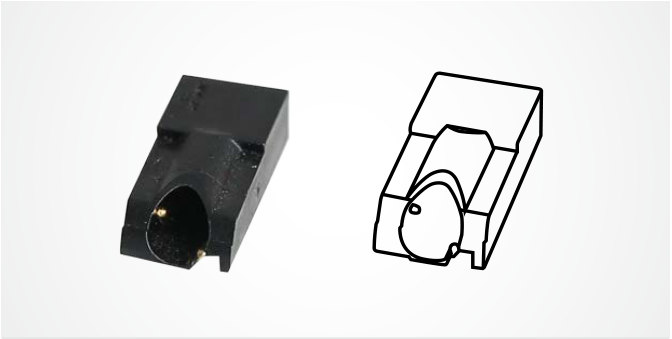

BSE16 Jack connector (vacuum)

Component: 13.6 x 6.6 (T4.2)

Nozzle: 6.5 x 6.0 (2HOLE)

Nozzle

Mark	Size
A	6.0
B	3.5
C	1.5
D	1.5

Component

Mark	Size
a	6.0
b	1.5
c	1.0

Switch

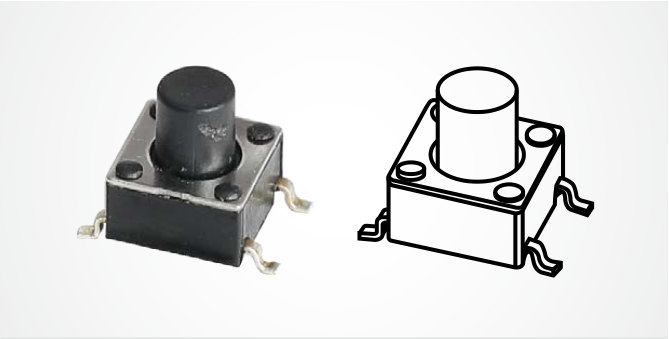

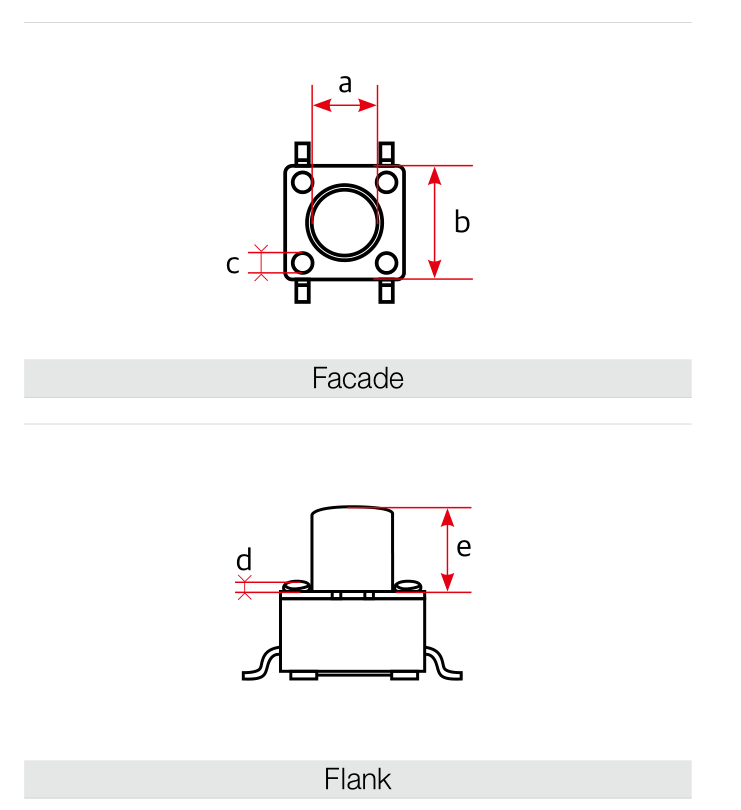

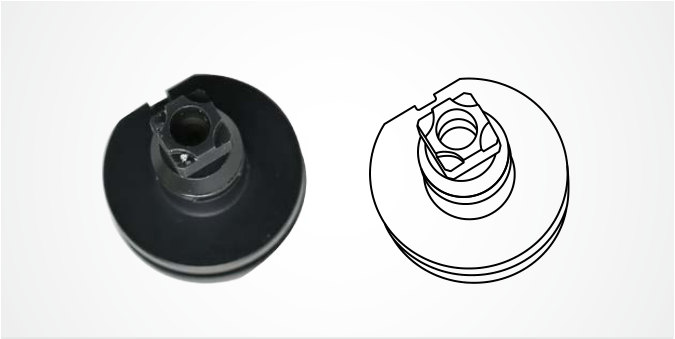

BSE17 Switch (vacuum)

Component: 6.1 x 6.1 (3.5)

Nozzle: 6.1 x 6.1 (4.0)

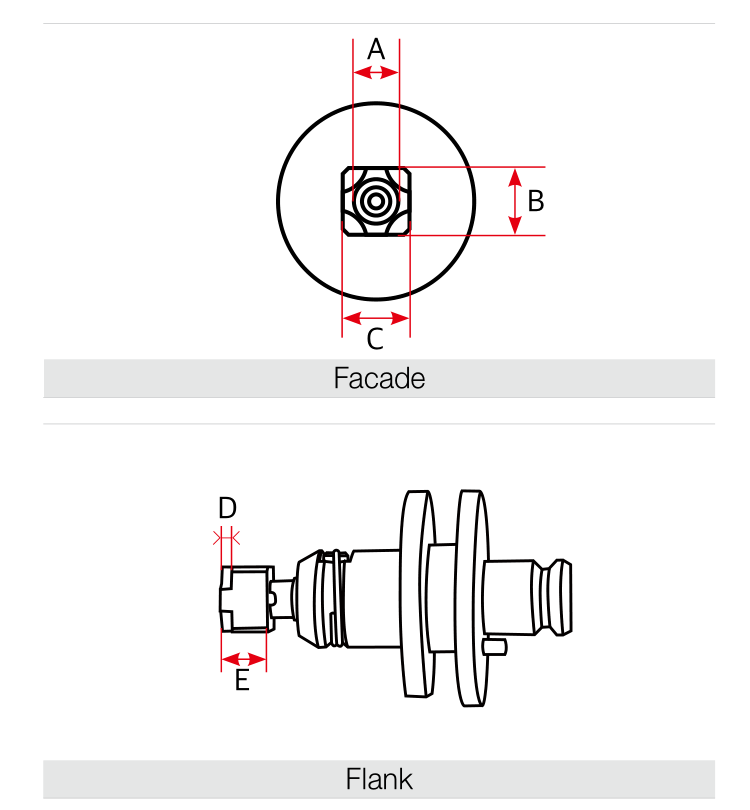

Nozzle

Mark	Size
A	4.0
B	6.1
C	6.1
D	1.2
E	4.5

Component

Mark	Size
a	3.5
b	6.1
c	1.2
d	0.3
e	3.2

Chip

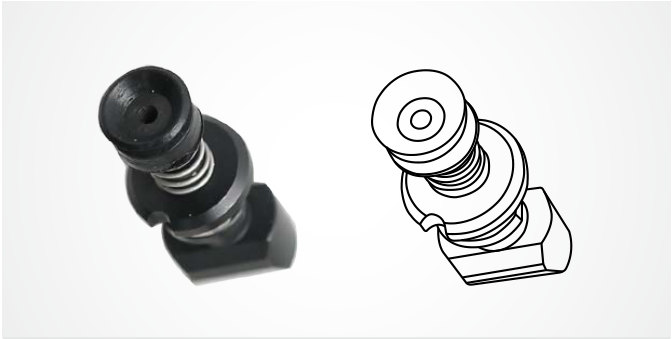

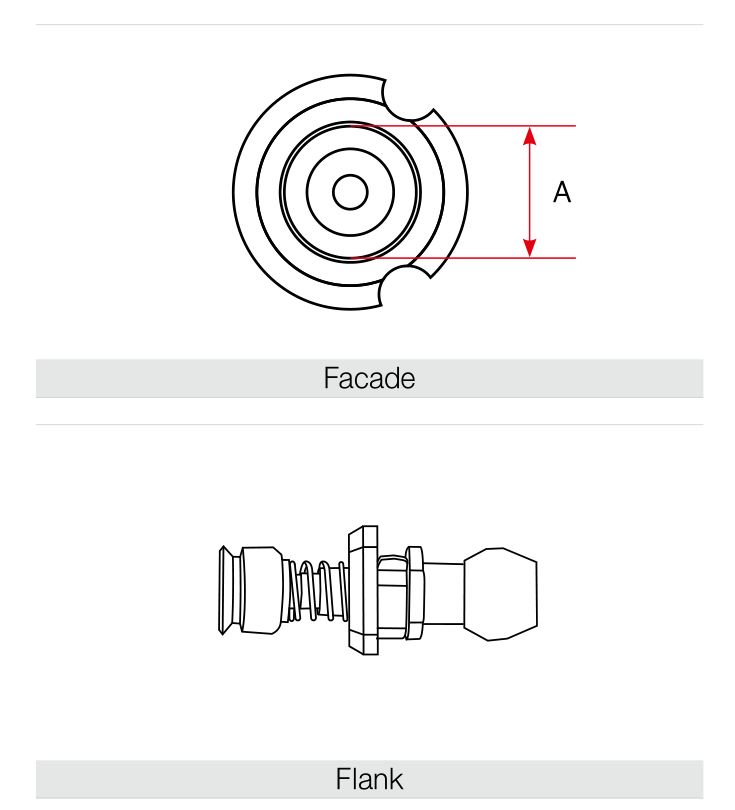

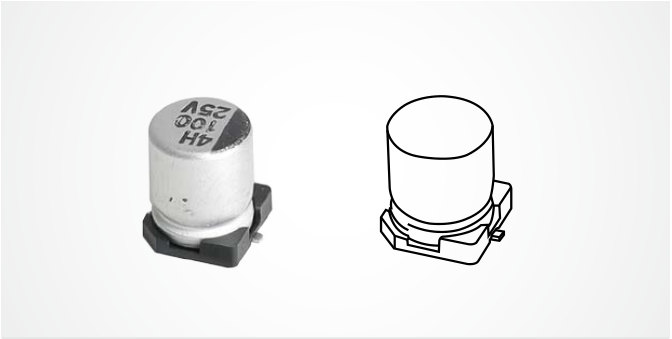

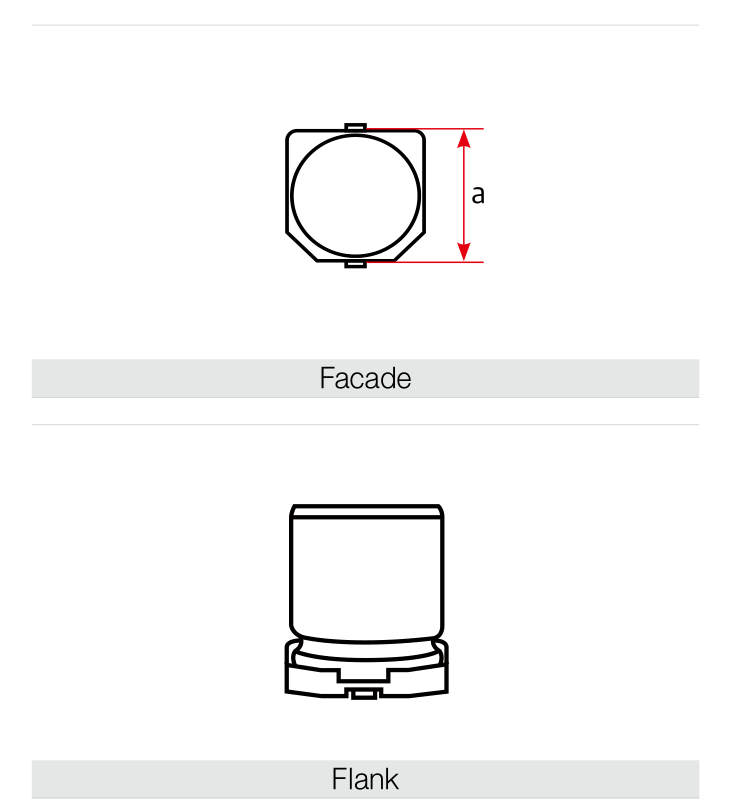

BSE18 Chip (vacuum)

Component: 6.3

Nozzle: 5.5 (Rubber Type)

Nozzle

Mark	Size
A	5.5

Component

Mark	Size
a	6.3

Standard nozzles

Standard nozzles for the main placement machines are arranged after you contact us, once the machine and the part number are confirmed. Part numbers for each machine are on the product page.

If you are not sure a custom mounter nozzle is needed, contact us. Contact

A mis-pick can also come from soil inside the nozzle. Nozzle cleaners (SC-ENH / SC-ENX) are on the SMT cleaning page. Nozzle cleaners (SC-ENH / SC-ENX)

Questions

Can a custom nozzle pick a part that a standard nozzle misses?: The nozzle is designed to the shape of the part. Examples for connectors, lenses, LEDs, brackets, and switches are on this page.
Can we ask about a part that is not in the lineup?: Yes. The examples are only examples. Send a photo or a drawing of the part, the tray, and the machine model.
What about lead time, minimum quantity, and material?: After you contact us, we tell you during the drawing and quotation, matched to the part and the quantity. Send the part information first.
Can you make a nozzle from the part or from photos, without a drawing?: Send photos and the dimensions of the part, the tray, and the machine model. We prepare a drawing for you to confirm.
Can we order more of a nozzle you have already made?: Yes. The nozzle is kept by drawing and model number, so the same shape can be ordered again.
Can we ask about repairing a nozzle?: Yes. Send photos of the nozzle as it is, and the machine you use. We check whether a repair or a new nozzle is the better path.

Ask about a customized nozzle

Send a photo or a drawing of the part, the tray, and the machine model. We prepare the drawing and the quotation.

What to send with the inquiry

Photos of the part, from more than one side
Dimensions of the part, if you have them
The tray, or the tape
The placement machine
What is going wrong (mis-picks, tombstoning, and so on)

For a repair or a repeat order, photos of the nozzle and the model number if you have it (such as BSE01)

The form has no file field. Send photos and drawings to Sales@fidea.co.th.
